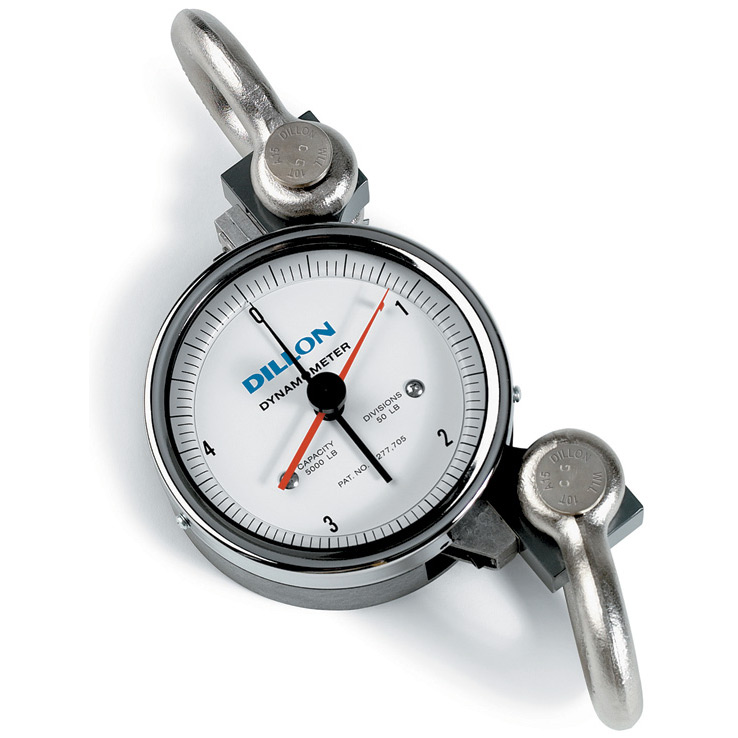

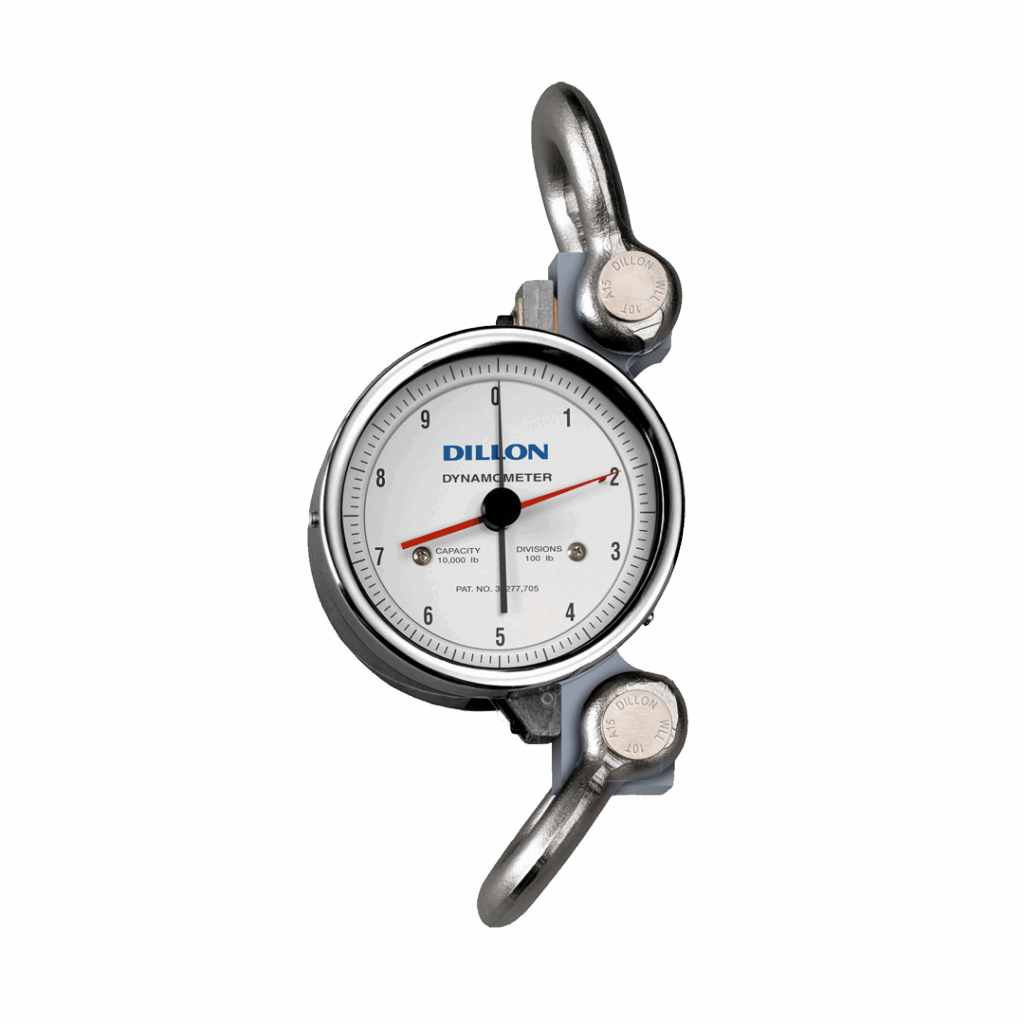

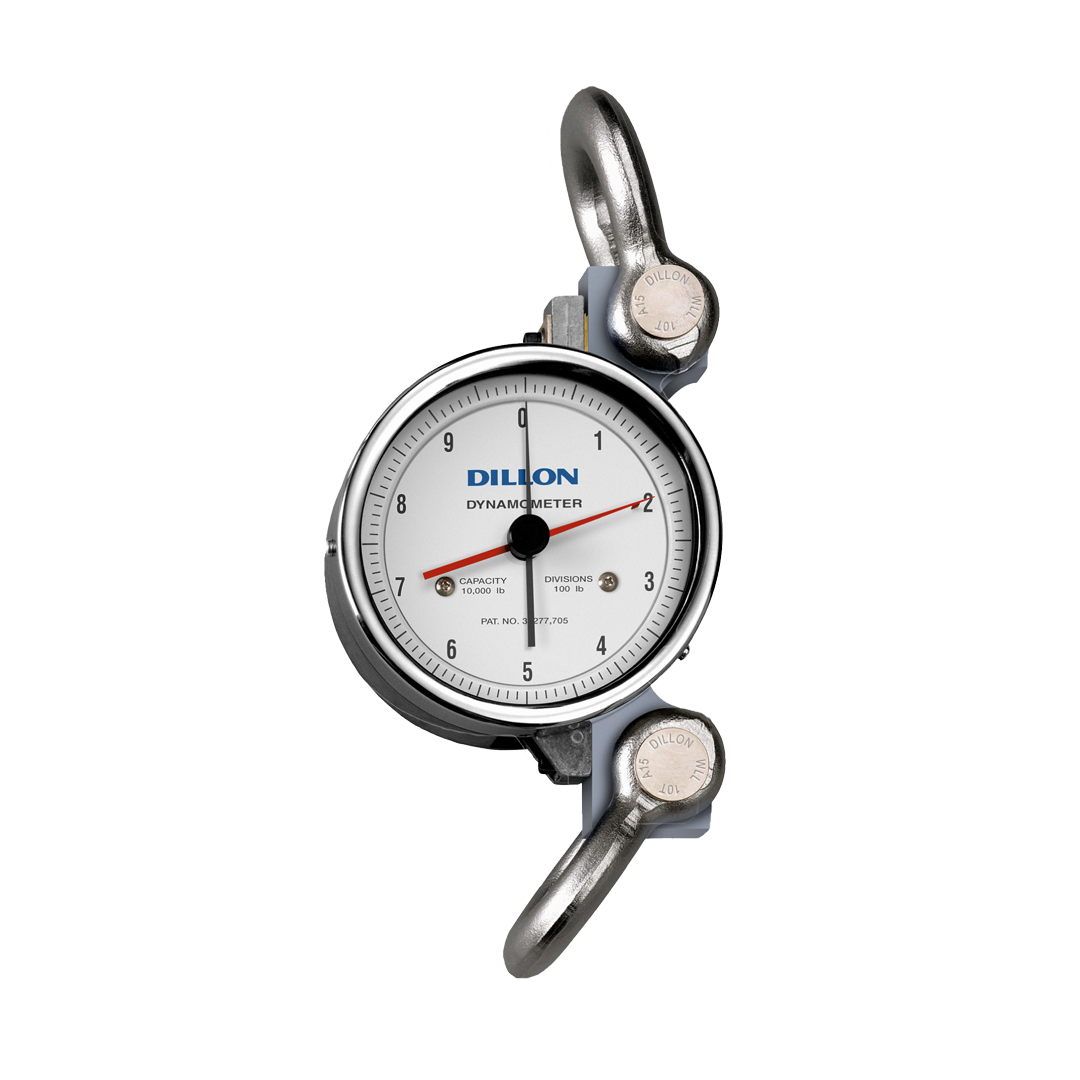

AP Dynamometer
The AP Dynamometer is used for such diverse jobs as:
- Aircraft engine removal as part of a boot strap assembly
- Line sagging and erecting
- On-board load testing cranes/davits/lifeboats
- Tensioning of flare stack guy wires
- Safe lifting and tension monitoring
- Erecting and monitoring stage rigging
- Installation and maintenance of overhead high voltage electrical lines (OHEL)
- Installation and tension monitoring of large glass installations, tension wires
- Many other applications: cable pulling, zip wire tensioning, logging, highway recovery vehicles, tug boats
Overview
Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications: the pounding aboard military vehicles, rough handling in field measurements and even use underwater (Dillon recommends short intervals in clean water followed with rinse and drain). Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.
Specifications
Range
500lb to 50,000lb
Size
5″ and 10″ dial face
Proof Load
Carry case, batteries, manual and calibration card
Overload
500%
Units of Measure
lbf or kgf
Accuracy
+/- 0.5% of instrument capacity
Zero Control
Zero up to 20% capacity
Calibration
Traceable to NIST
Operating Range
-50º F to 140º F
Corrosion Protection
Powder coated pressure bar
Protection
Hard polymer storage case included along with calibration certificate
Recalibration
Every 12 months
Approvals
CE approved / ASME B30.26 up to 20,000lb capacity
Why AP Dynamometer
- Value for money entry level dynamometer
- High Accuracy: +0.5% of capacity
- 5:1 Safety Factor
- No Batteries Required
- 5” or 10” dial faces
- Anti-parallax design for maximum readability
- Max force pointer
- Zero or tare functionality
- Rugged and durable
- Holds calibration
- Wide working temperature range -50 to 140ºF
