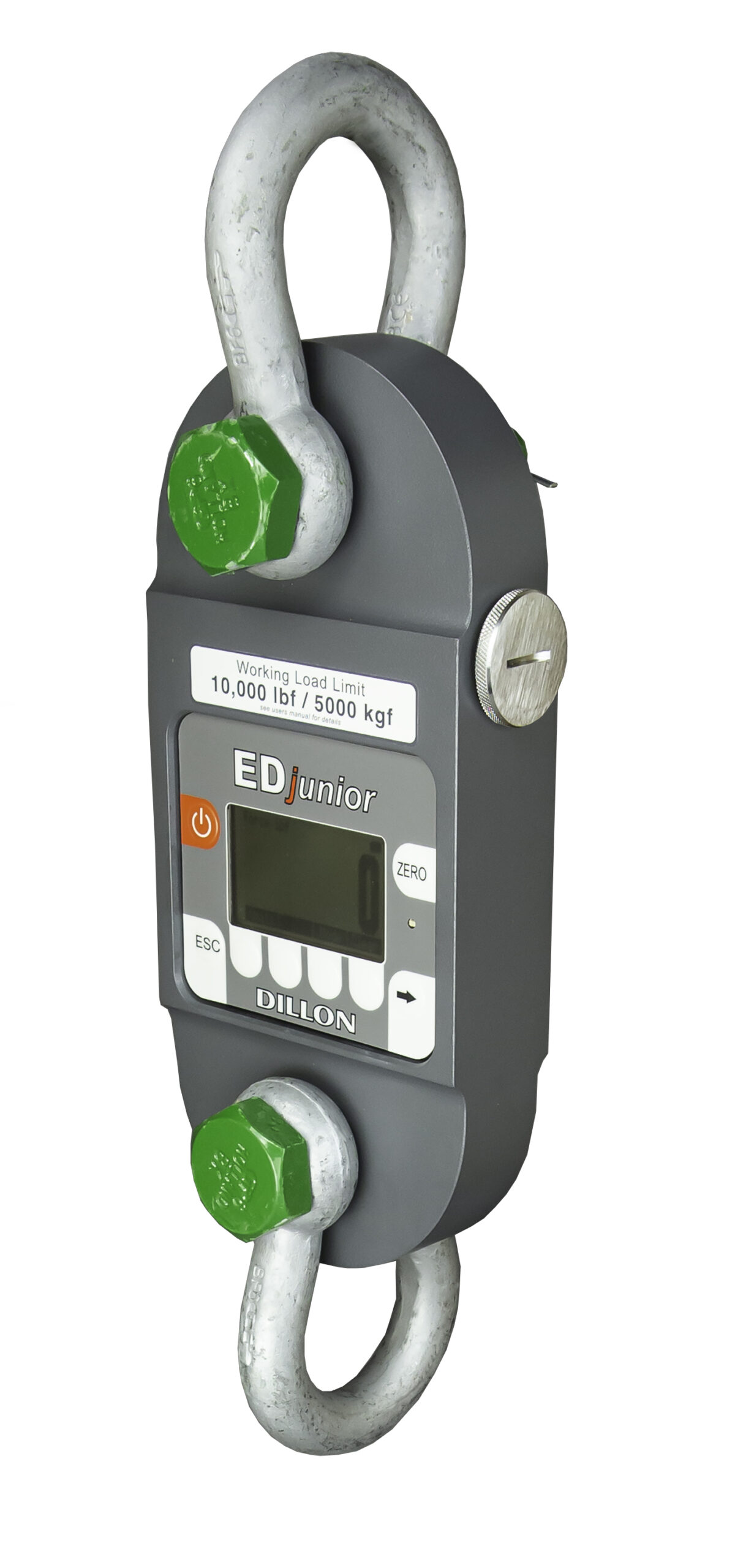

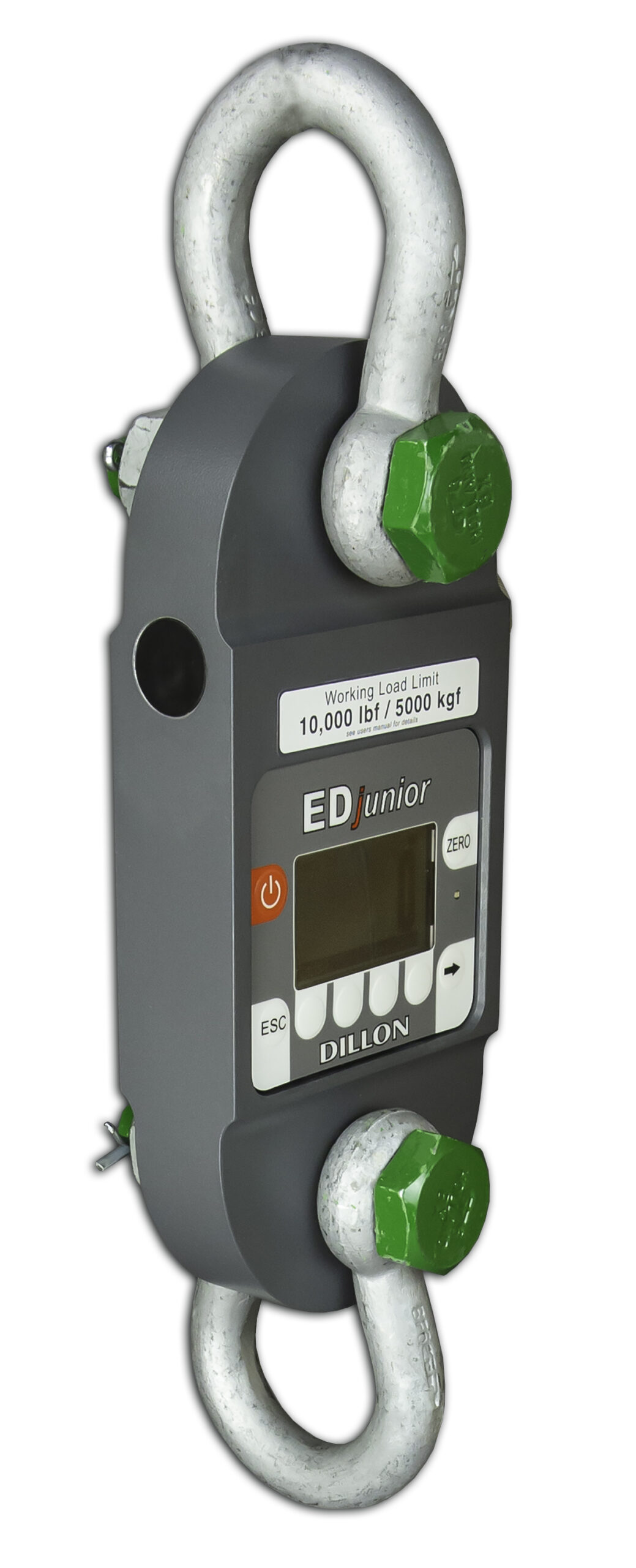

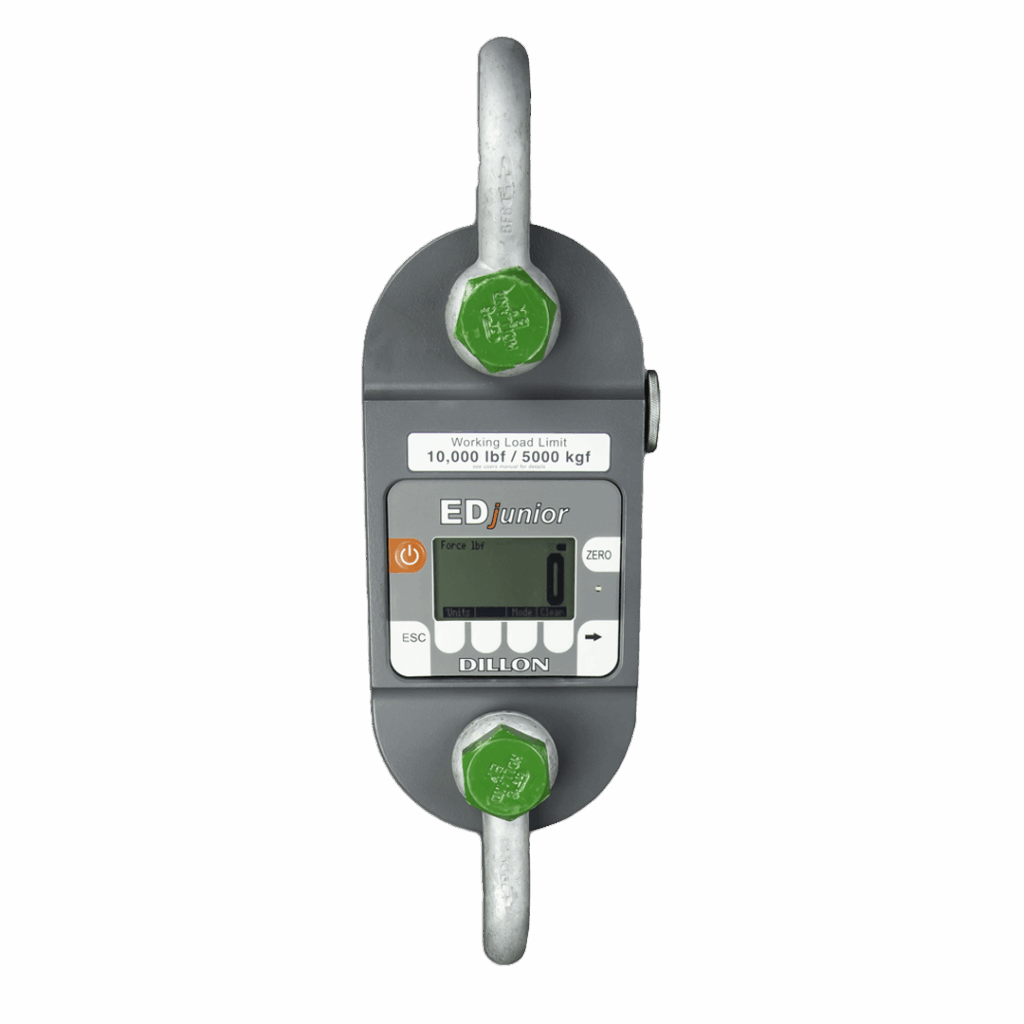

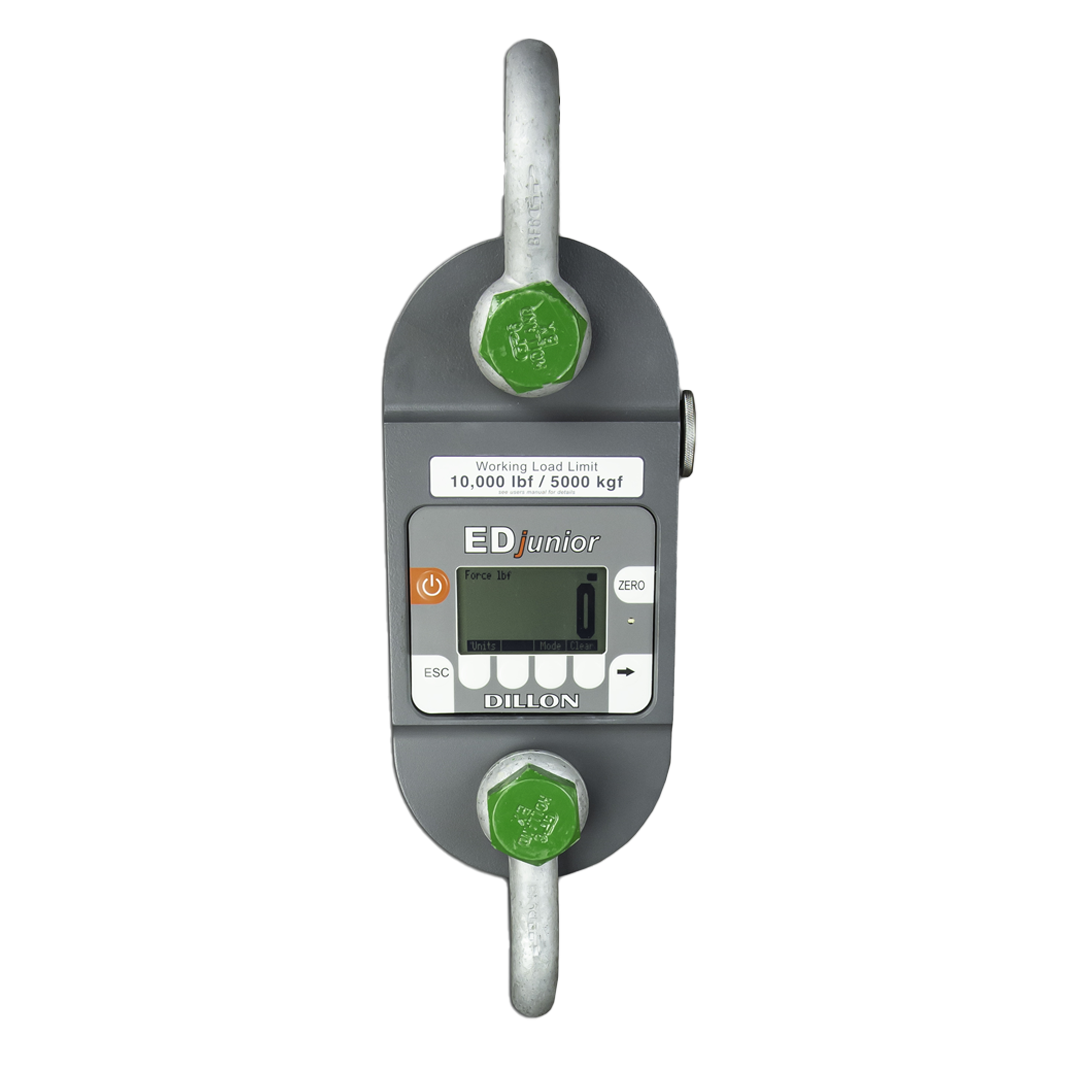

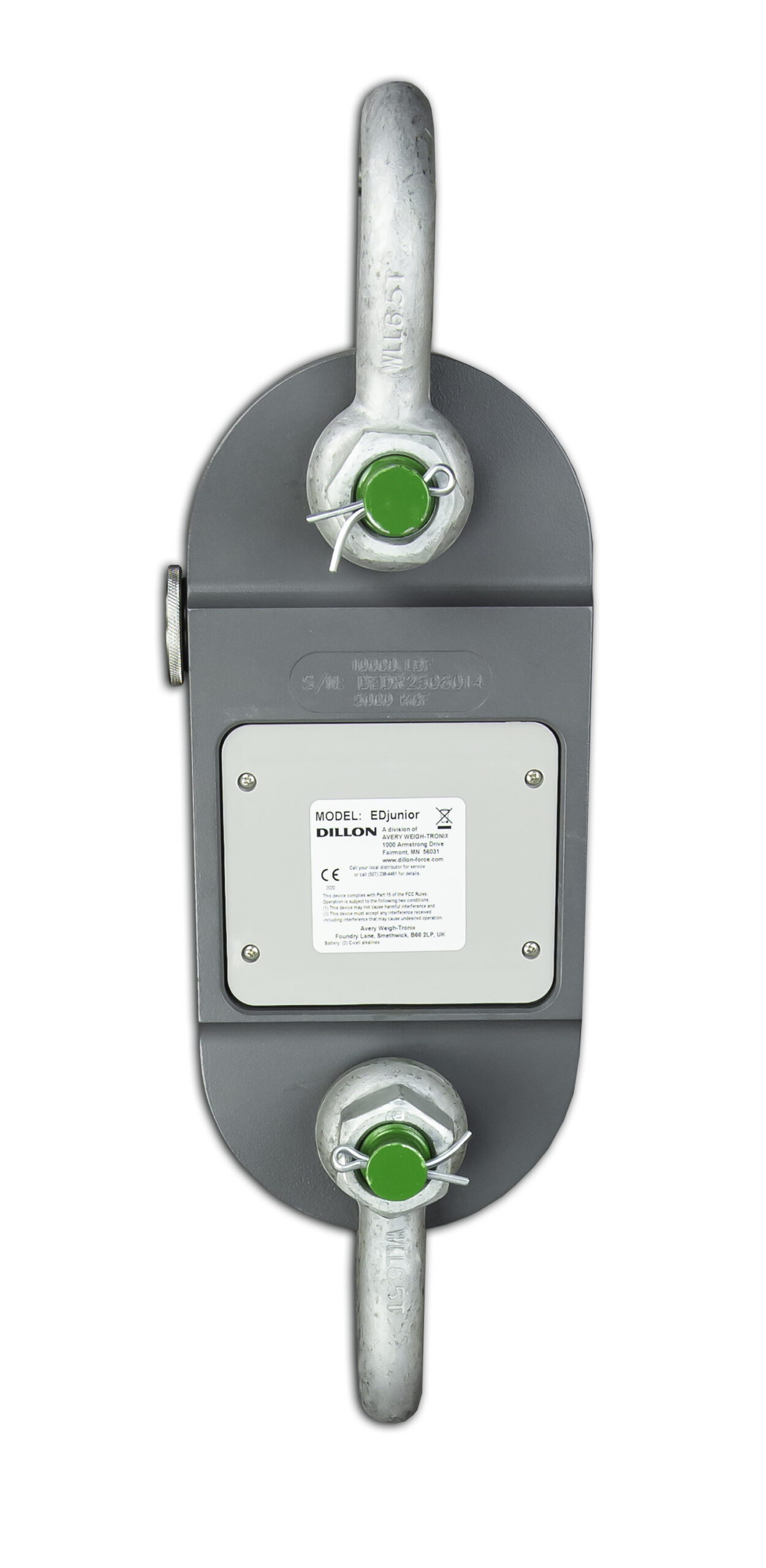

EDjunior dynamometer

The EDjunior dynamometer gets straight to the point, apply a load – take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.

The EDjunior draws its strength from the exhaustive engineering that went into the design of the Dillon EDXtreme dynamometer.

Both share the same base of research and testing to match material characteristics and load cell technology. The choices made in development have yielded an exceptionally rugged instrument capable of consistently delivering accurate, repeatable measurements.

The EDjunior is even more remarkable when you consider price. If you believe you have to pay more to get more – just compare the Dillon EDjunior to the competition. Nothing else comes close!

The EDjunior is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere in the low price range. With the EDjunior, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety.

Get a Quote

Specifications

Range
2,500lb to 25,000lb

Overload
EDJ 1,2 & 5T = 700% EDJ 10 = 500%

Units of Measure
lbf, kgf & Newtons

Resolution
1/1000 resolution

Test
BIT test enabled

Operating Range
-4° F to 158° F (-20° C to 70° C)

Protection
Hard polymer storage case included along with calibration certificate

Recalibration
Every 12 months

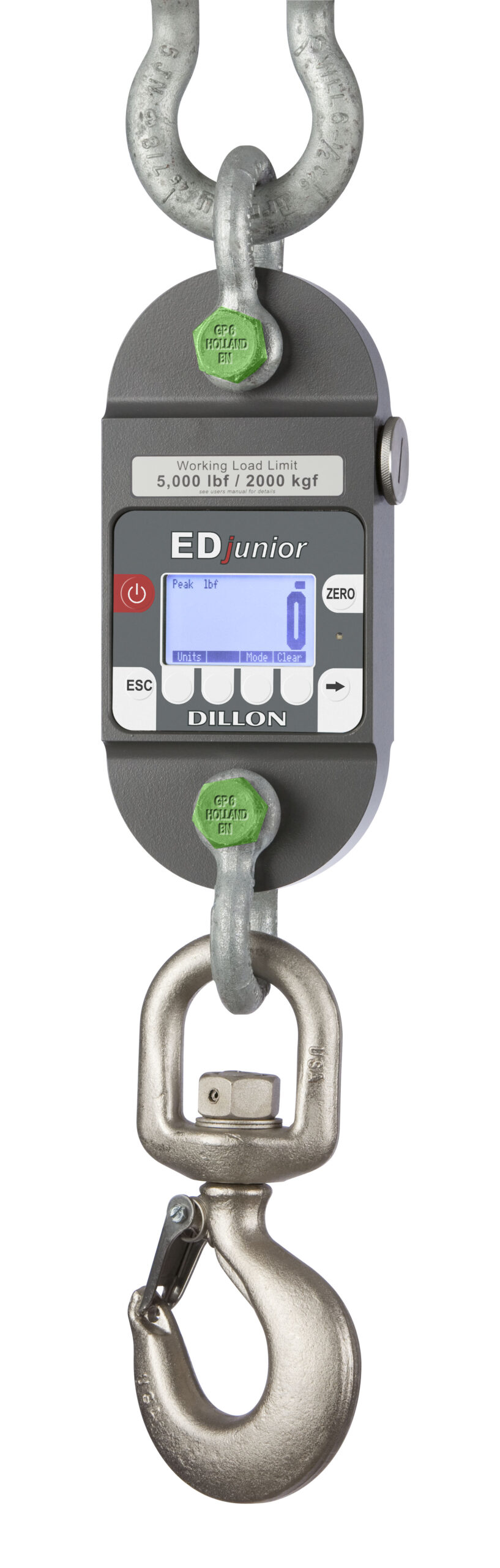

EDjr-2T_Left_Hook

Proof Load
150%

Modes
Live & Peak display modes

Capture Rate
10Hz

Accuracy
± 0.2% of instrument capacity

Battery
2 x C battery’s with 420+ hours life

Display
Dot-graphic LCD display supports full text and 1” high digits

Environmental
IP68

Approvals
CE

Why EDjunior Dynamometer

  • Value for money entry level dynamometer
  • High Accuracy: +0.2% of capacity
  • Live and Peak display modes
  • Data Capture from 10Hz
  • Low, Med & High selectable resolution
  • Truly rugged and durable
  • Choose your unit of measure: lb, kg, N
  • Easy-to-read LCD Display
  • +420 hrs battery life
  • 7:1 Safety Factor
