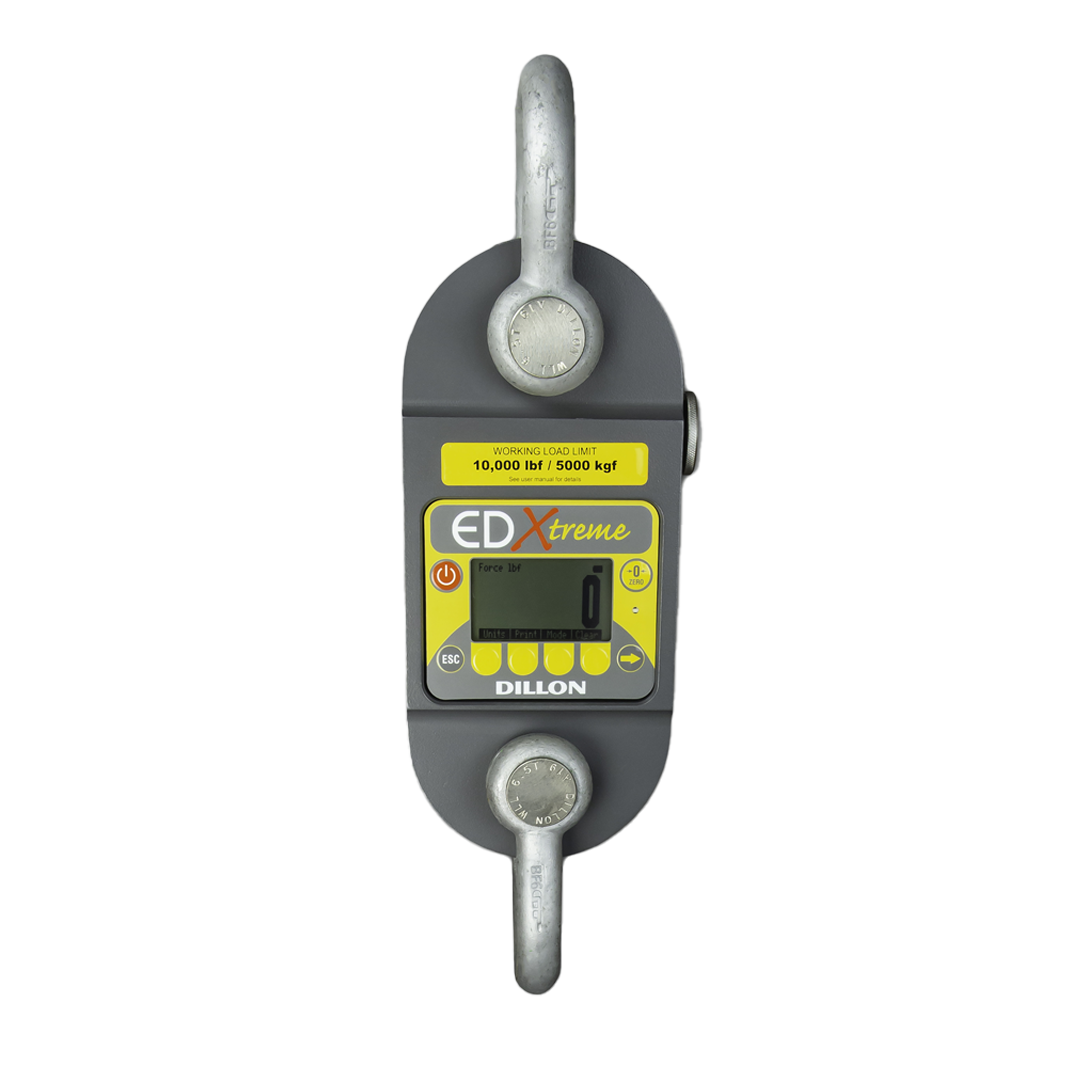

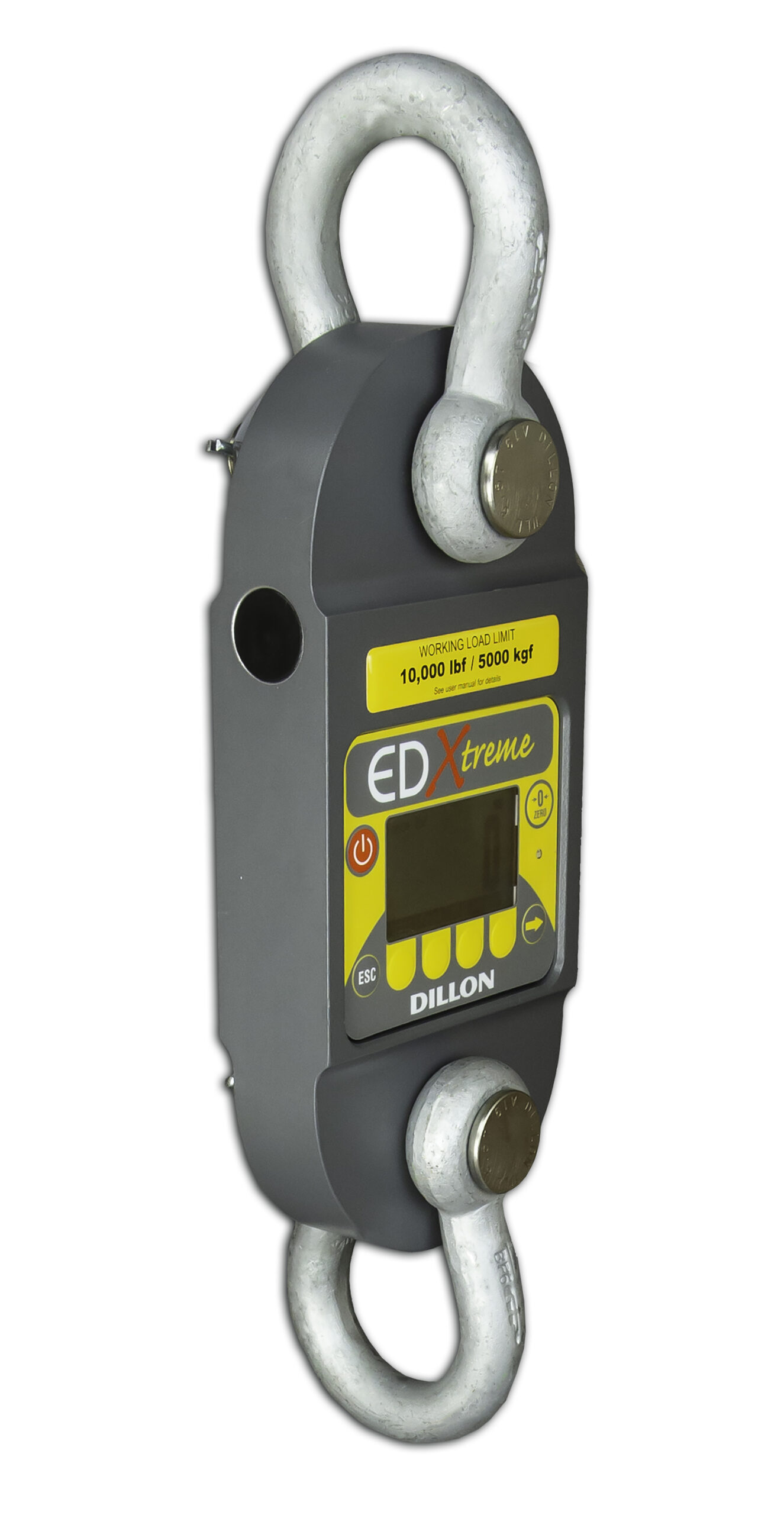

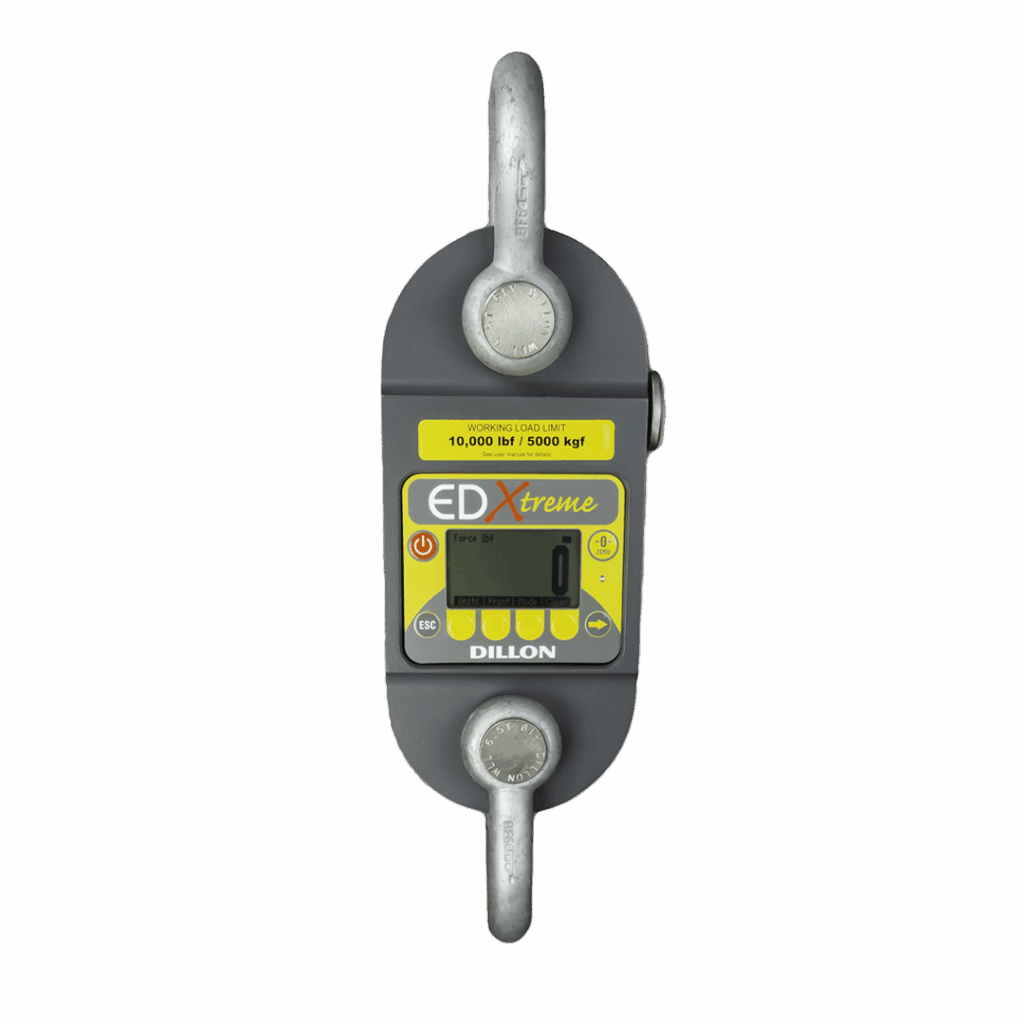

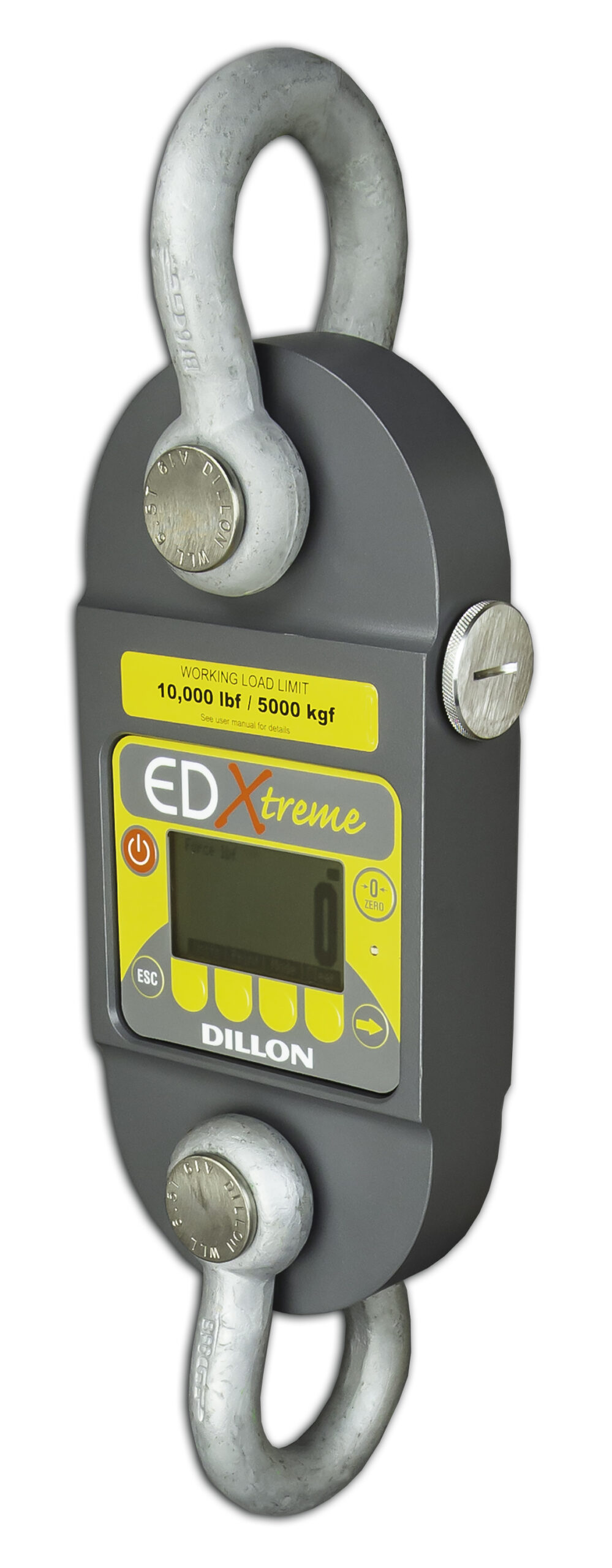

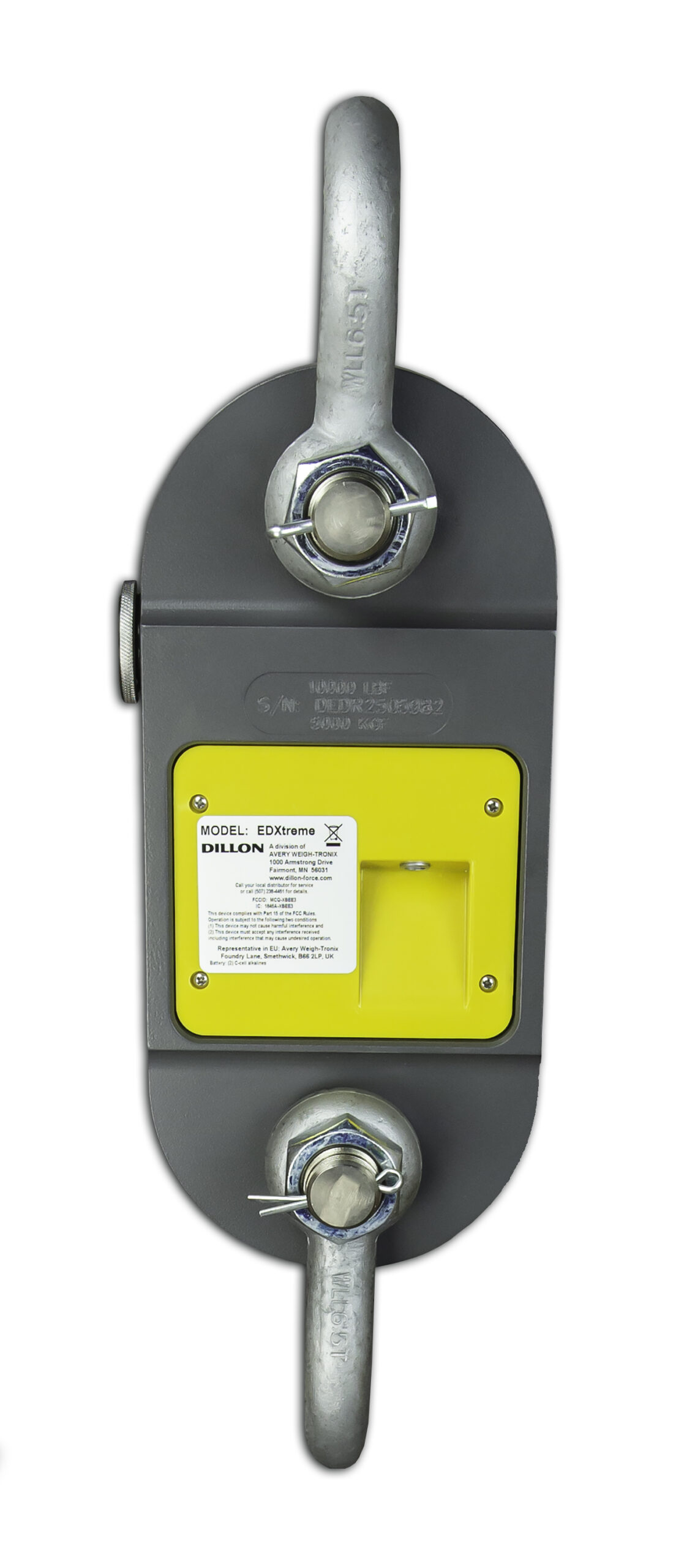

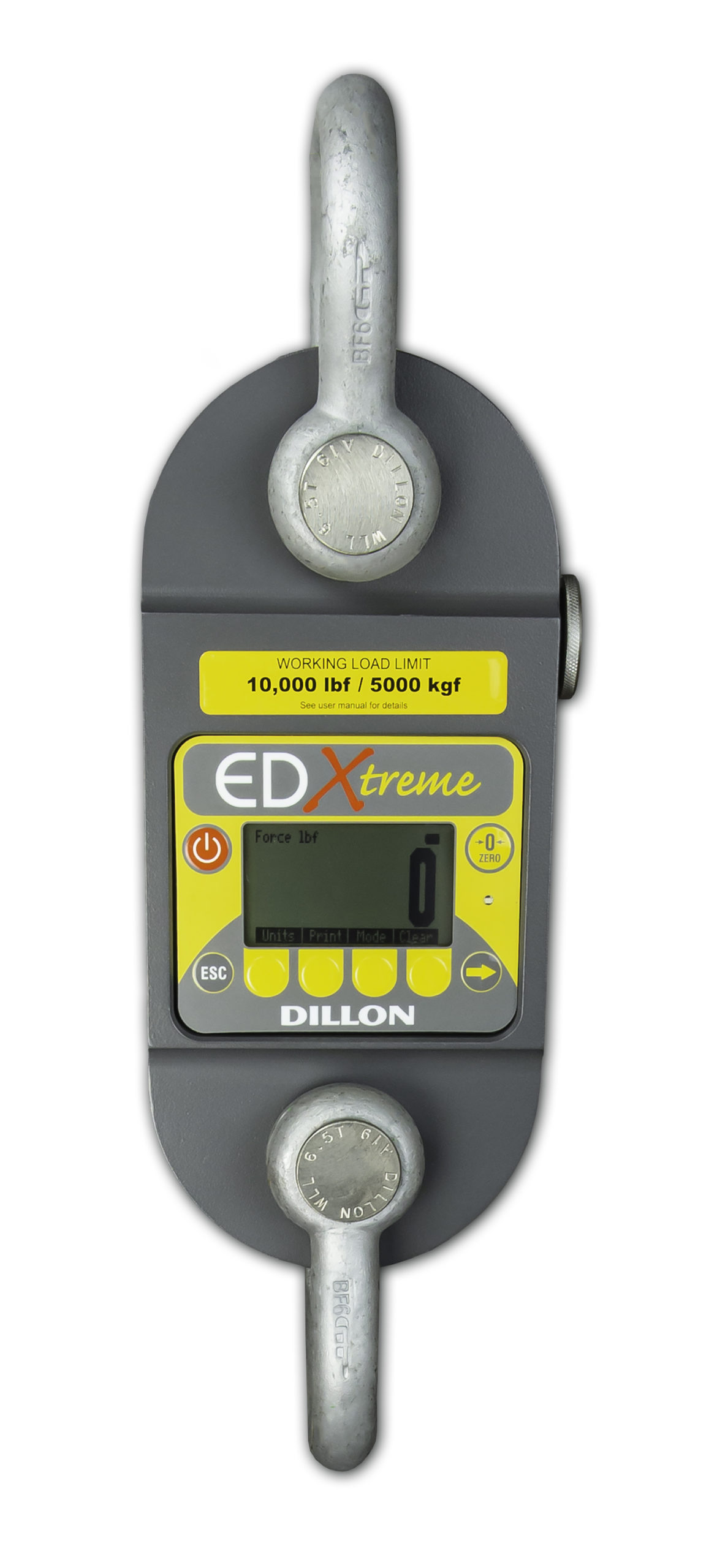

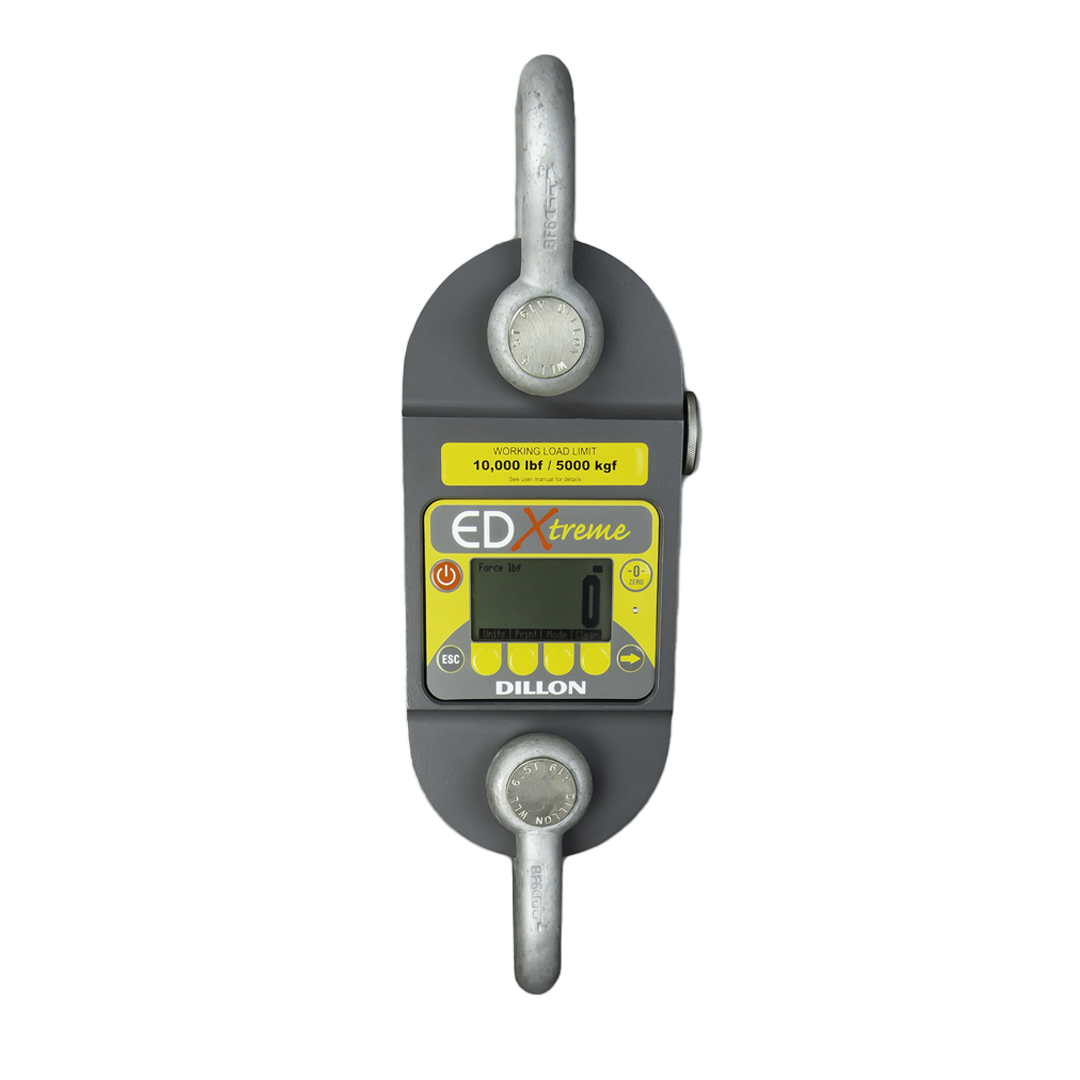

EDXtreme Red Dynamometer

The EDXtreme Red exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum factor of safety.*

While the EDXtreme Red may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence.

With user-defined functions and sophisticated communication options, the EDXtreme Red readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location. It is the definition of application versatility.

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDXtreme Red drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDXtreme Red offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC through either an RS-232 or USB connection for compilation and analysis, or to generate hard-copy printouts.

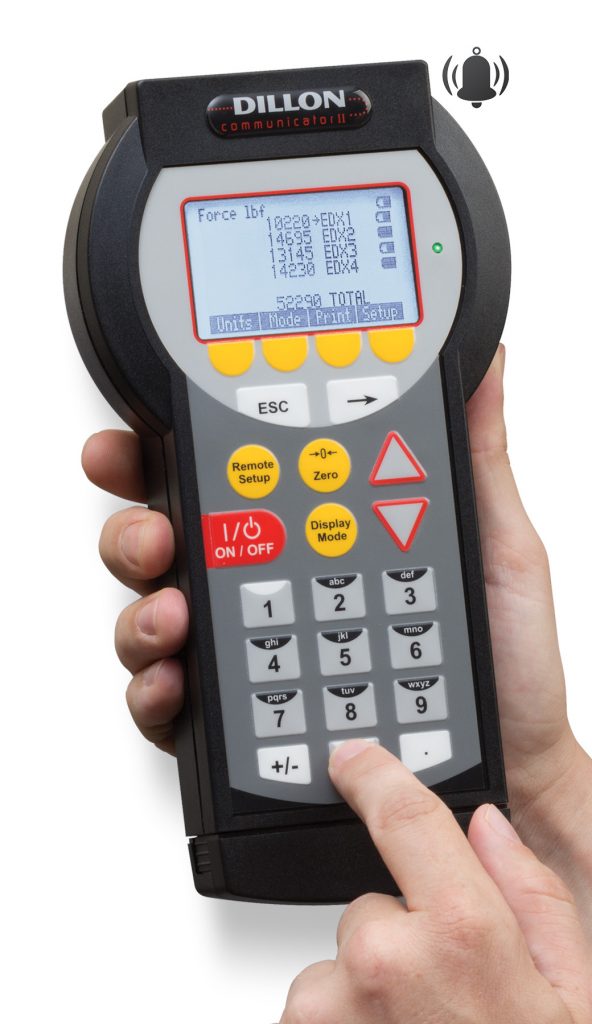

The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display readings at any or all lift points and calculate the total load.

Since 1937, Dillon Dynamometers have been chosen for the jobs where only the best will do. Now, Dillon has once again lifted the performance bar and set the standard for others to follow.

Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy.
