Designed for installations involving the sudden application or release of force. (Note: A maximum pointer cannot be supplied with the shockless dial indicator.)

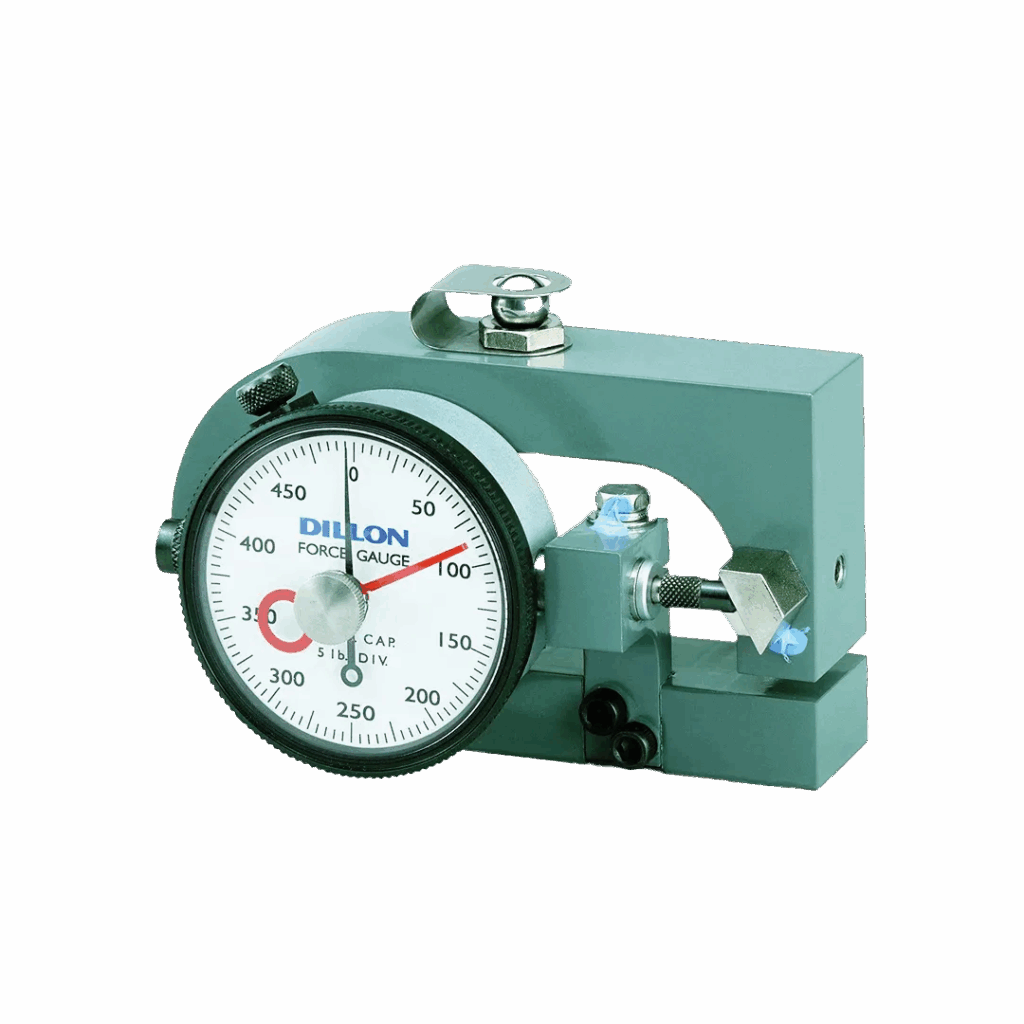

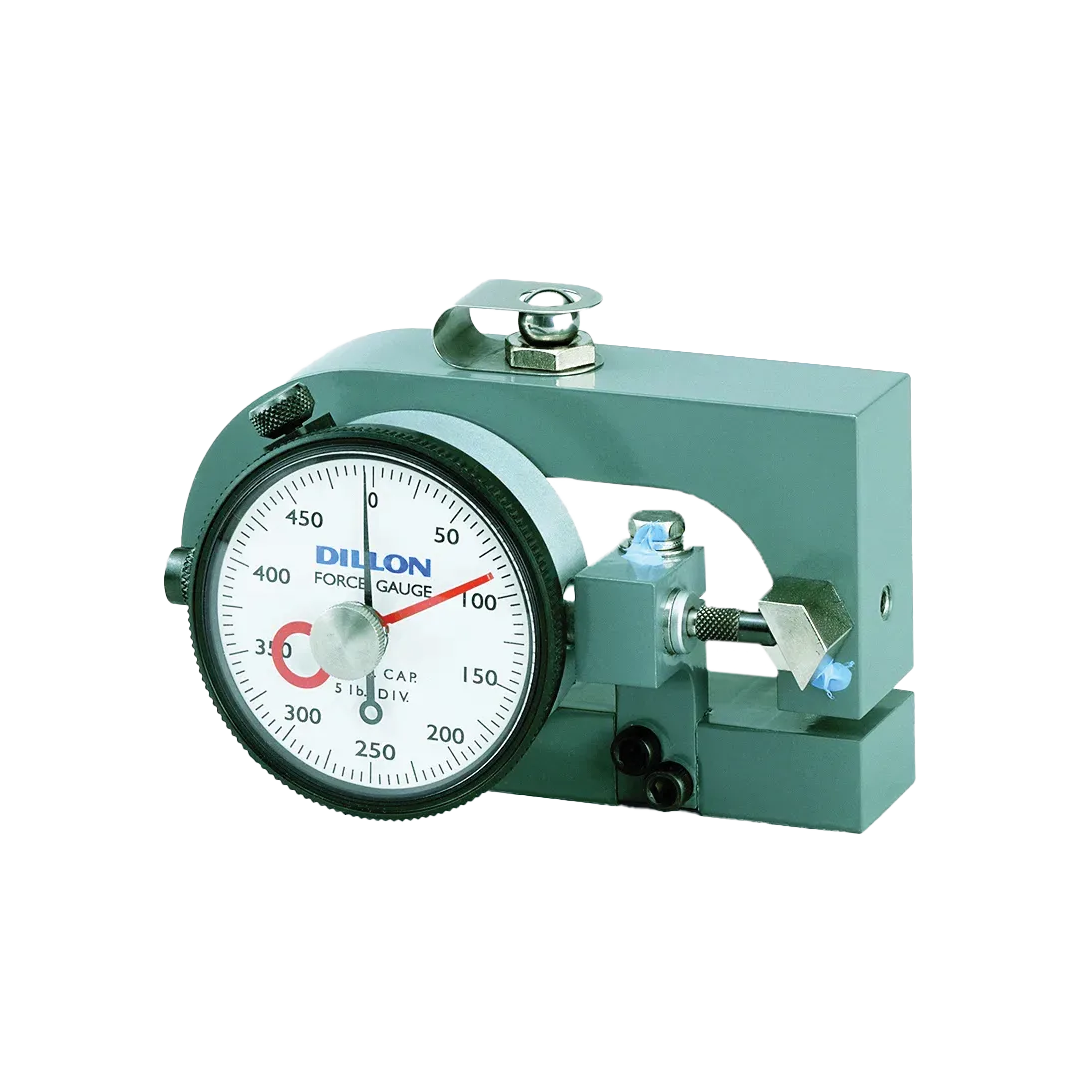

Model X-C
Model X-C comes in nine capacities ranging from 50 lb to 25,000 lb or 50 to 10,000 kg. All feature accuracy of ±1% of full capacity, except the 25,000 (10,000 kg) capacity instruments which are accurate to ±2% of full capacity.
Overview
Load is applied against a hardened ball which rotates to maintain vertical alignment as pressure increases. The ball is held in place with a spring clip or retainer. A threaded mounting hole is located opposite the loading ball in the bottom of the beam.
Model X-C is available in pound and kilogram capacities.
Options
Retains the peak load reading until manually reset.
The dial’s zero position can be factory set at 12, 3, 6, or 9 o’clock. The standard position is 12 o’clock.
