For installations involving the sudden application or release of force. (Maximum pointer cannot be supplied with the shockless dial indicator.)

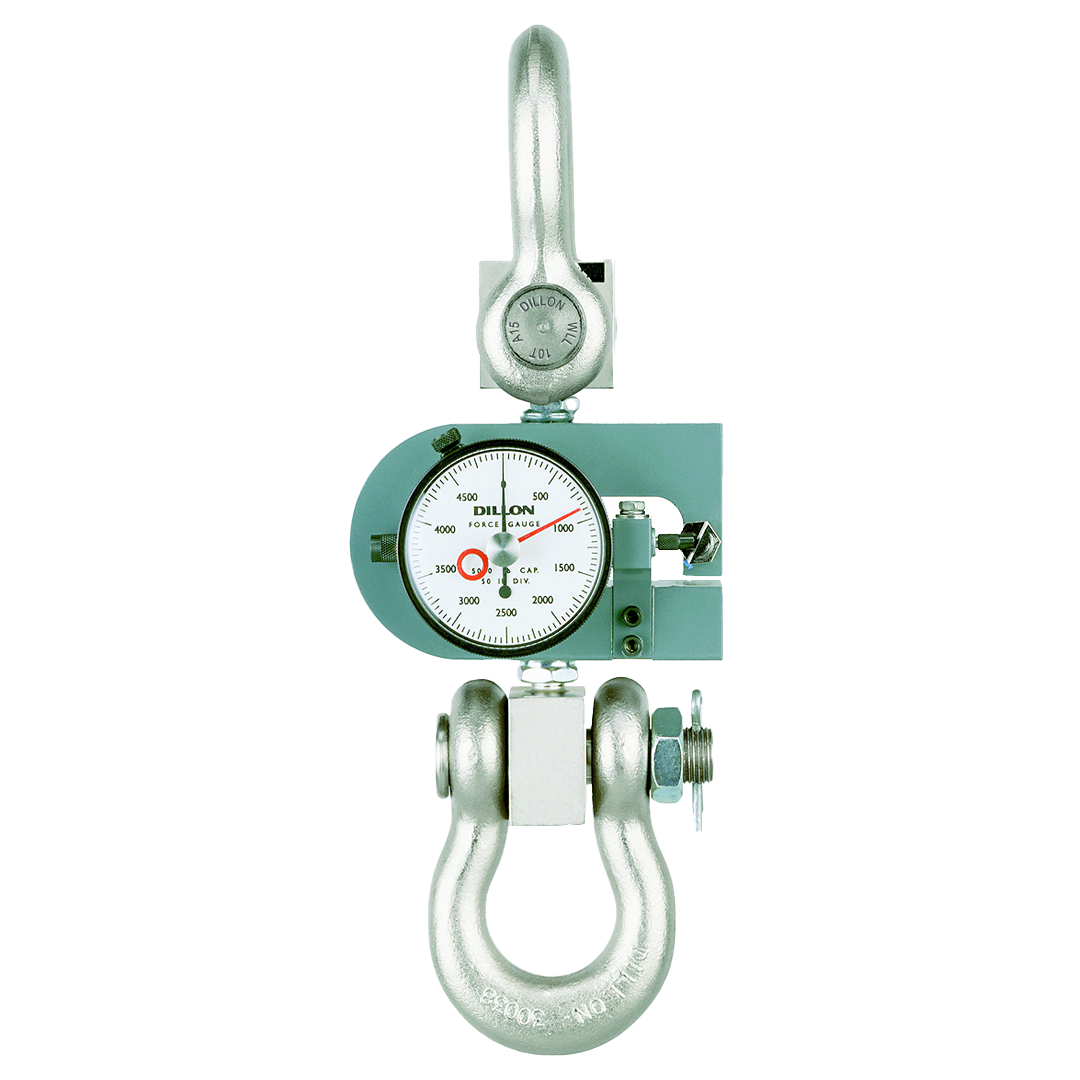

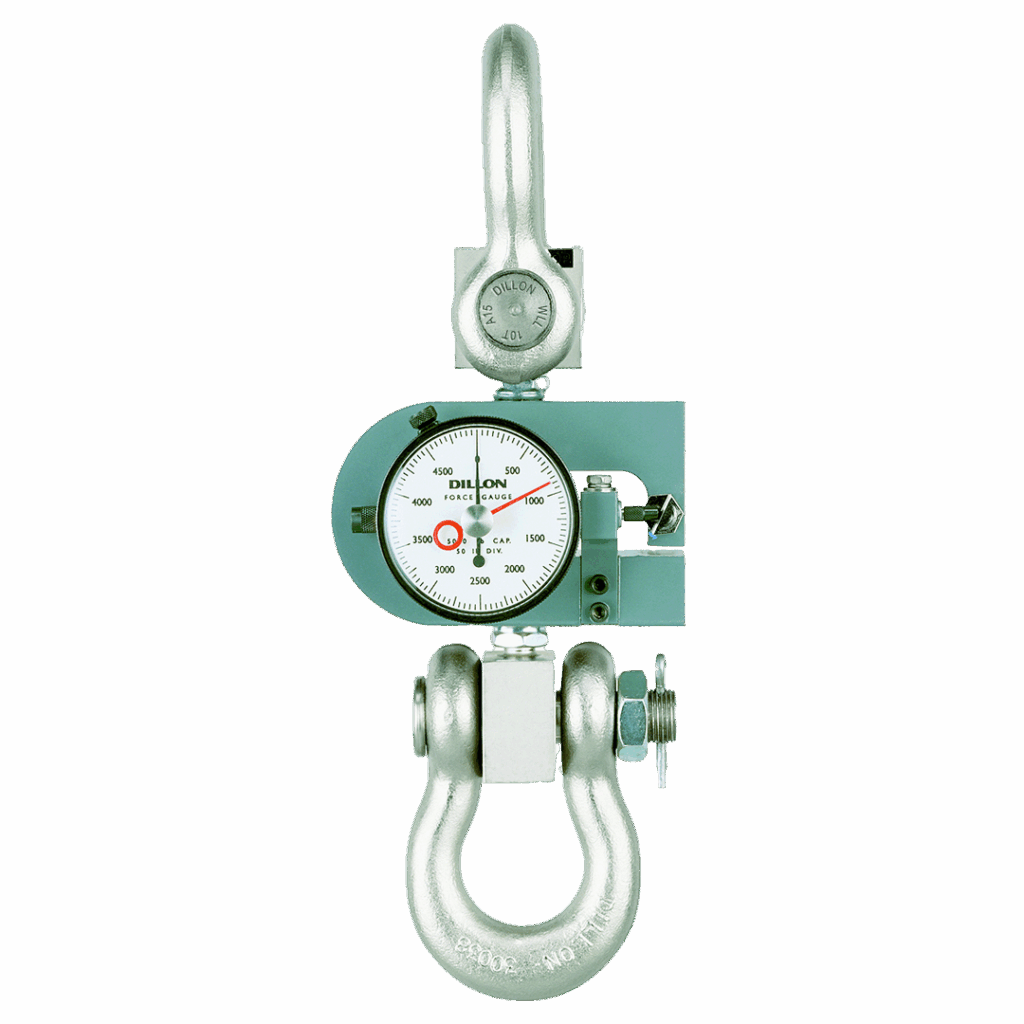

Model X-ST
Dillon offers the Model X-ST in seven capacities from 100 lb to 10,000 lb or 25 kg to 5,000 kg. Accuracy is ±1% of full range. (Note: For applications requiring capacities beyond 10,000 lb or 5,000 kg in tension, consider the Dillon Dynamometer).
Overview
Tension Force Gauges in capacities through 2,000 lb (1,000 kg) are supplied with two rod-end connectors. 5,000 and 10,000 lb (5,000 kg) capacities are equipped with convenient shackles and pins.
Calibration is available in pounds and kilograms.
Options
Remains at the peak load until manually reset.
Dial zero may be factory positioned at 12, 3, 6, or 9 o’clock. The standard position is 12 o’clock.
