EDjunior Crane Scale

EDjunior Crane Scale

View Specifications

The Dillon EDjunior Crane Scale is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere. With the EDjunior Crane Scale, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety.

EDjunior Crane Scales are made up of two parts, an EDjunior Dynamometer and the associated crane scale hardware kit which includes the following: a swivel hook, oversized shackle assembly & a wooden shipping/storage crate.

View Product Dimensions

View Available Shackle Dimensions

View Available Hook Attachment Dimensions

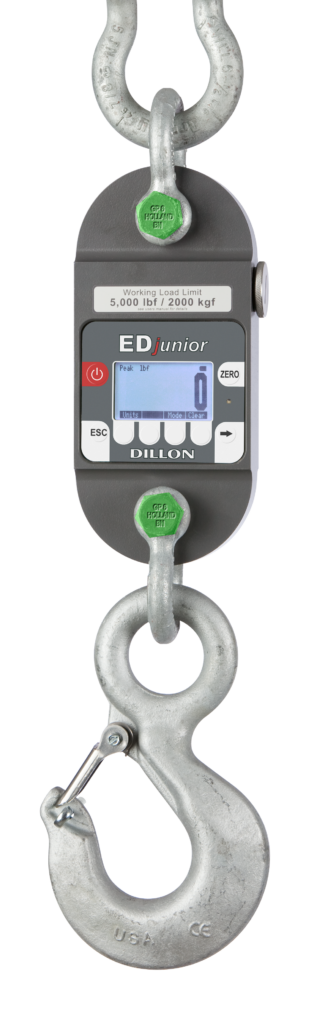

EDjr-2T_Nonswivel_Hook
EDjr_Nonswivel_Hook
EDjr_Basic Swivel_Hook
EDjr-2T_Basic_SwivelHook
EDjr-2T_Nonswivel_Hook EDjr_Nonswivel_Hook EDjr_Basic Swivel_Hook EDjr-2T_Basic_SwivelHook

Specifications

Accuracy

0.2% of capacity

Display

128 x 64 dot-graphic LCD display shows all digits

1.0″ (26 mm) high plus annunciators and softkeys

Includes

Carry case, batteries, manual and calibration card

Available Capacities

EDjr–1T – 2,500 lb | 1,000 kgf | 10,000 N EDjr–2T – 5,000 lb | 2,000 kgf | 20,000 N EDjr–5T – 10,000 lb | 5,000 kgf | 50,000 N EDjr–10T – 25,000 lbf | 10,000 kgf | 100,000 N

Hook Choices

Basic Swivel Hook – Used to align rigging to the crane

Non-Swivel Hook – Basic hook for low-cost, low-headroom weighing

Why the EDJunior Crane Scale?

The EDjunior provides peak detection as well as sustained load readings

The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2 % (full scale)

Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required for critical lifting applications

The exclusive Dillon SOFTKEY interface provides direct access to setup and display functions without the typical confusing menu structure

With the EDjunior’s low power consumption, typical battery life is over 425 hours

Dillon’s distinctive curve-body design further eliminates unnecessary weight & streamlines the unit to help prevent binding

WHO NEEDS AN EDJunior Crane Scale?

Load Testing & Rail & Metro
Utility & Oil & Gas
