Cranegard

View Specifications

Clamps on cables for wire rope hoist, elevator and crane overload prevention and slackline detection. Installs in minutes with screwdriver and Allen wrench. Installation is simplicity itself. Clamp the Cranegard® directly onto a slack hoist or crane wire rope quickly without severing rope or interrupting service. Up to four switches can be furnished. Switch actuates immediately when pre-set load limit is exceeded. Dillon will set the switches to trigger at the loads you desire, if specified at time of order.

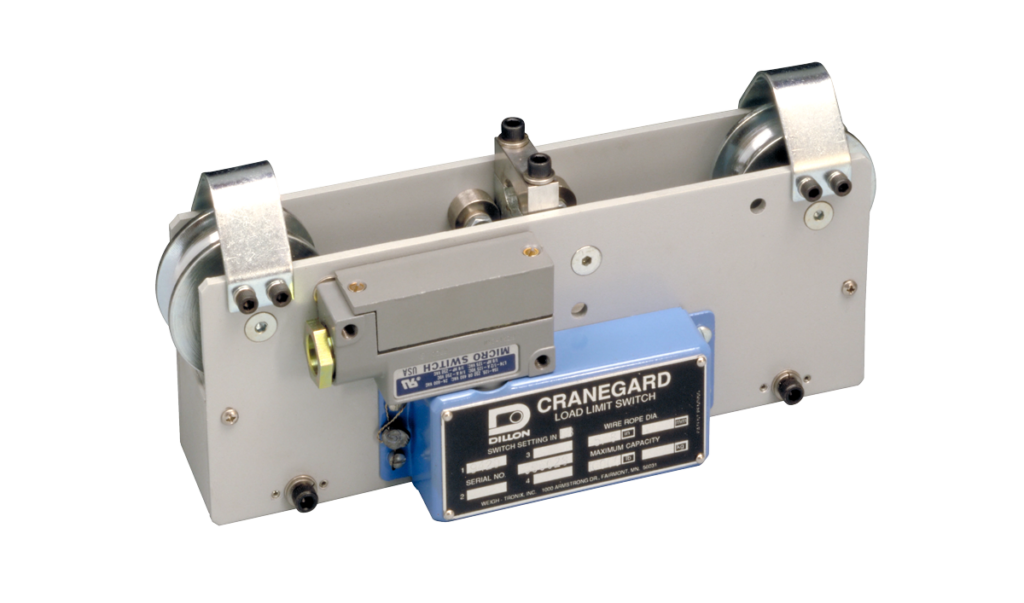

Cranegard-1
Cranegard-1

Specifications

Available Capacities

CGS-1: 2,500 lb | 1,250 kg

CGS-2: 5,000 lb | 2,500 kg

CGS-3: 10,000 lb | 5,000 kg

CGS-4: 20,000 lb | 10,000 kg

Safety

2:1 Ultimate Safety Factor

Cable diameters

3/8” – 1¼”

Features

Up to 4 switches for slack and overload

Switches can be wired to trigger anything from a warning alarm to complete system shutdown

Slack setpoint as low as 100lbs

Setpoints can be adjusted in the field

Why the Cranegard?

Basic units can accommodate 1,2,3 or 4 of option B or 1 or 2 of option C switches

Ultimate safety factor of all units is 2:1 (1.8:1 for metric capacities)

Cable should be IWRC (Independent Wire Rope Core) with as many strands as possible

Wire rope selection for any application for proper safety factor is a customer responsibility

Calibration performed with rope diameter specified at order
