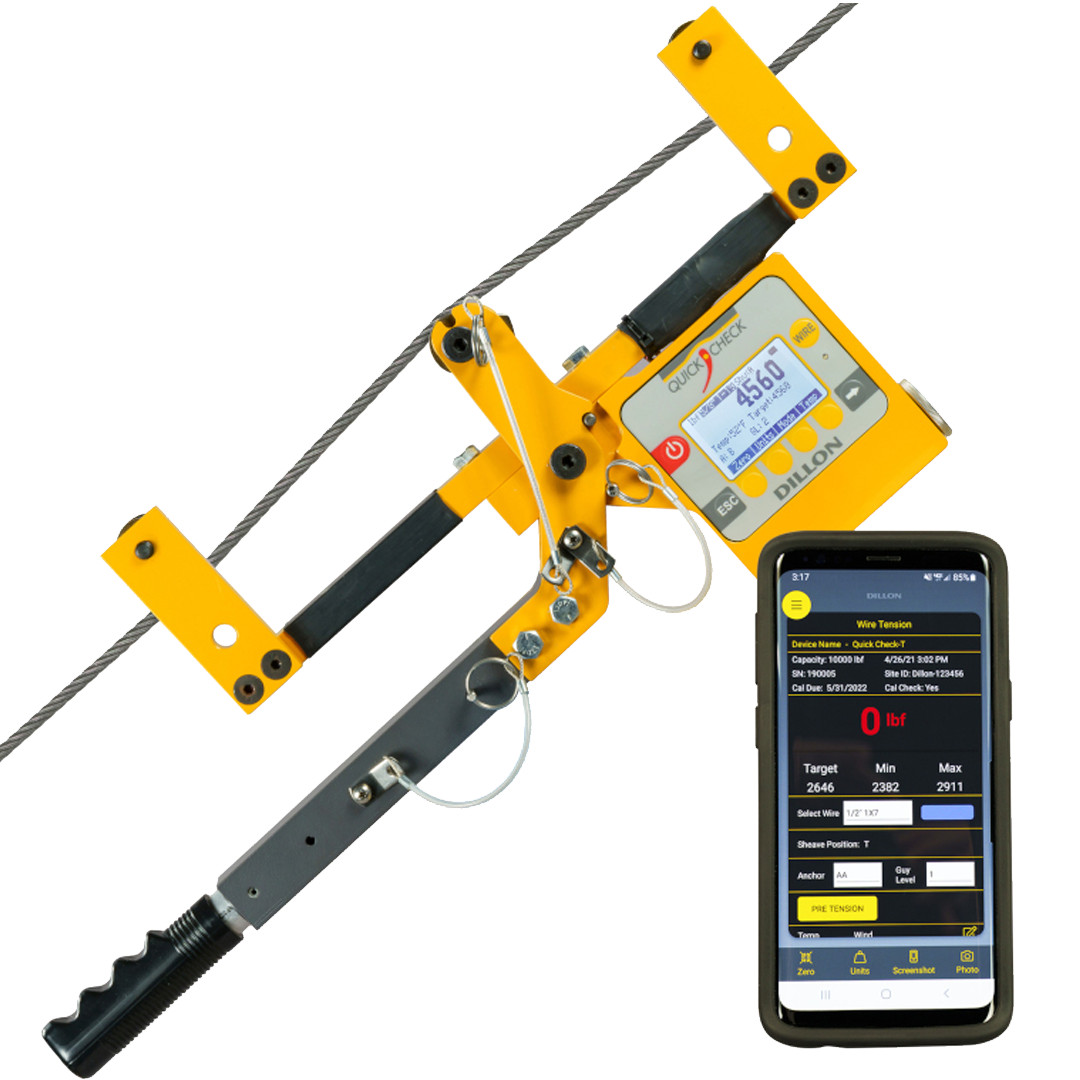

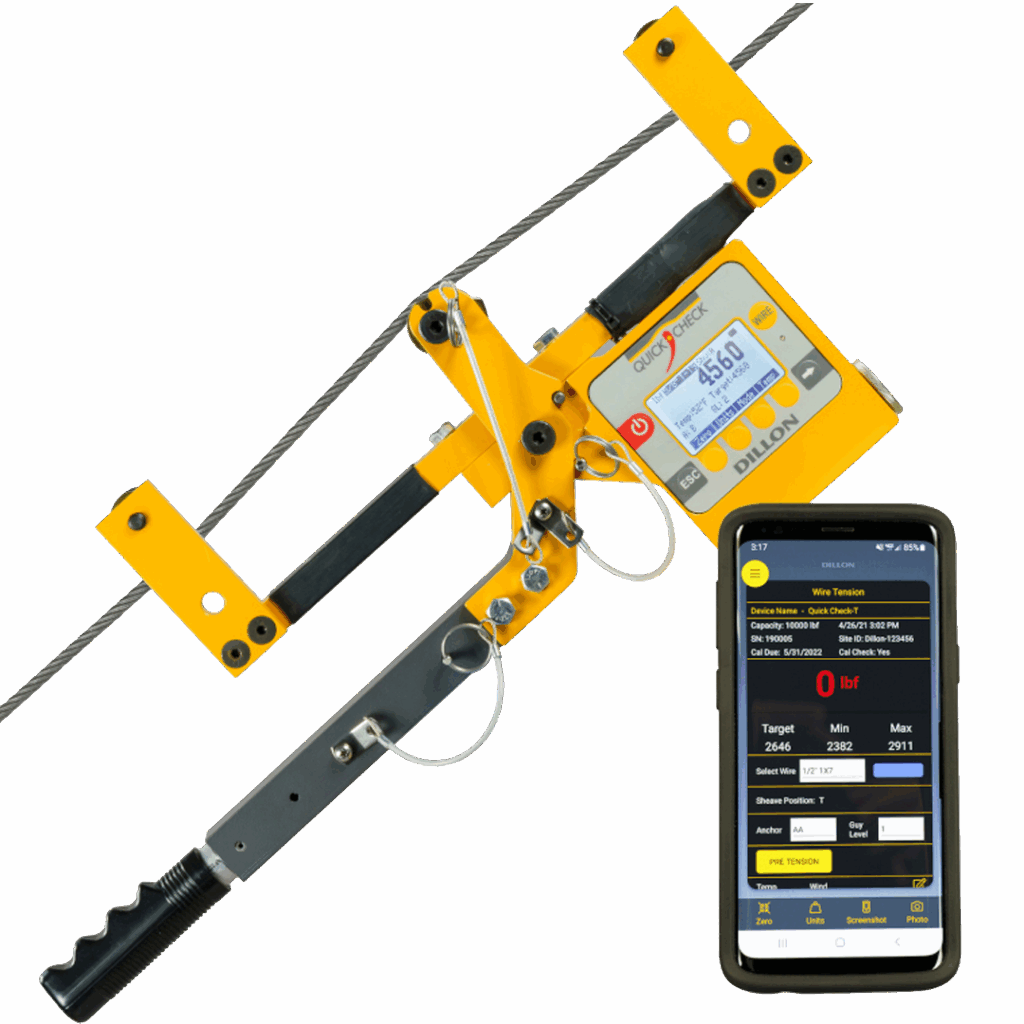

Quick Check-T Cell Tower Shunt Meter
Bluetooth® enabled with a custom mobile app to allow you to automatically record and report on job sites. Key Features:
- Bluetooth® enabled
- Custom mobile app
- Multi-wire single sheave
- Calibration check rod
- Automatic closeout report generation with photos (View Sample)
- Automatic target tension calculations
- Ability to capture pre and post tension readings
- Inbuilt image capture
View the cable library to learn more about the over 500 wires, cables and ropes available for calibration on all Quick Check tension meters.
Overview
The Dillon Quick Check-T tension meter makes a difference. It reduces time on the job site by eliminating the need for whiteboards, changing sheaves, and the need for charts to figure out target tensions. This unit also reduces time off of the job site by having automatic site form completion, with image, and direct complete reports.

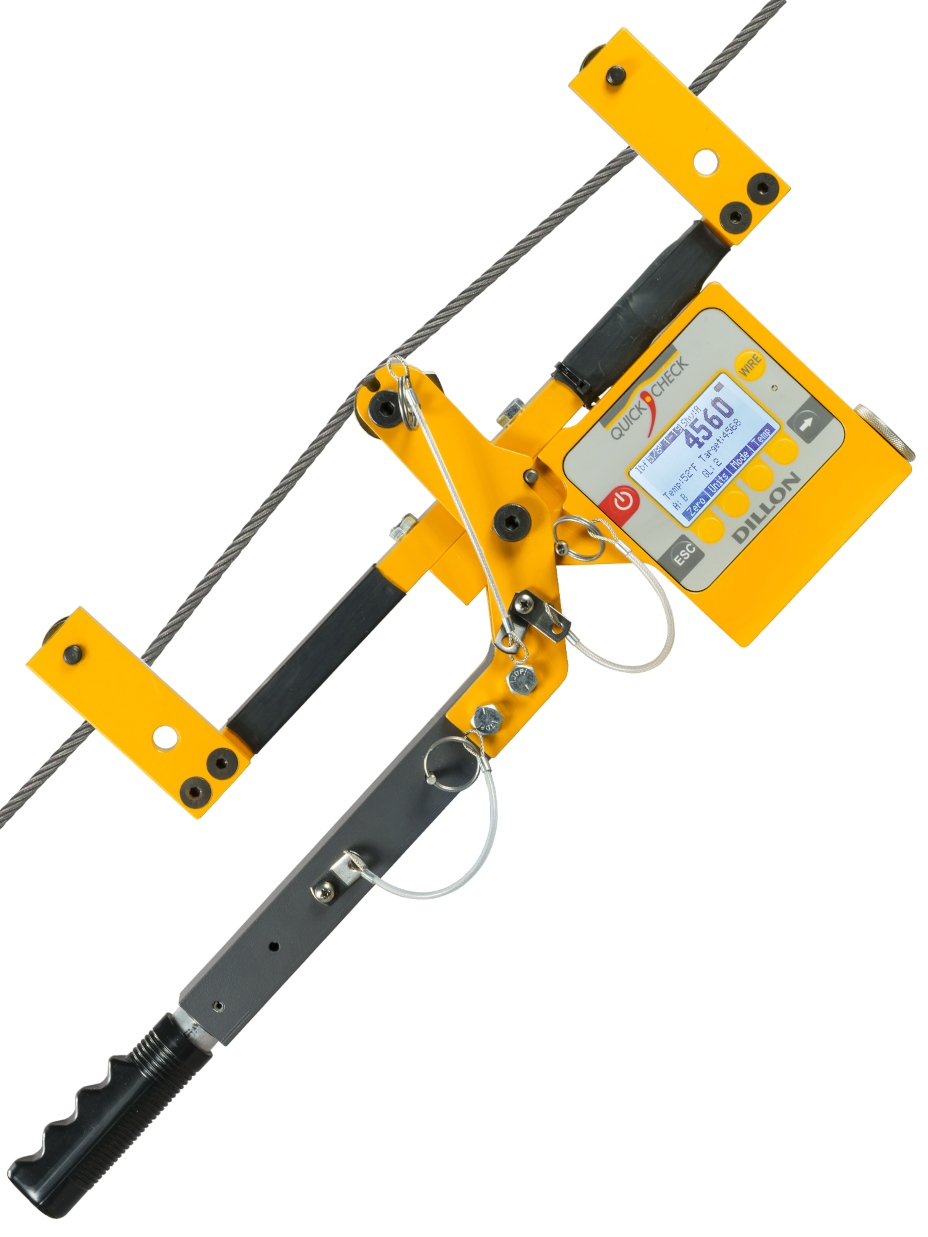

Specifications
Capacity
10,000 lb/45 kN/4500 kg
Communications
Bluetooth®
Data Export
Via mobile app
Wire Calibrations
Up to 20 wire calibrations
Capture Rate
10Hz, 100Hz & 1000Hz
Accuracy
+ 3% instrument capacity
Operating Range
-4° F to 158° F (-20° C to 70° C)
Protection
Hard polymer storage case included
Environmental
Suitable for continued outdoor use
Weight
11 lb (5 kg)
Size
0 x 23 x 3” (25 x 59 x 8 cm)
Range
Wire sizes from 3/16” (4.75 mm) up to 1.0” (25.4 mm)
Display
Dot-graphic LCD display supports full text
Units of Measure
lbf, kgf & Newtons
Resolution
Low / med / high (5000 resolutions)
Battery
Two C batteries
Calibration
Each wire rope is calibrated and is traceable to the National Institute of Standards and Technology. Certificate included with curve readings. Passes only with three consecutive confirming runs, with all points in specification.
Recalibration
Every 12 months
Approved By
Majority of cell tower owners
Product Videos
Why Quick Check-T Cell Tower Shunt Meter?
- Bluetooth® enabled, Custom mobile app
- Time saving check-tensioning mode
- Portable and rugged – Designed for outdoor use
- Built-in averaging saves time and eliminates errors
- Factory calibrated for up to 20 unique wire sizes and types
- Speed and Accuracy
