AP Dynamometer

AP Dynamometer

View Specifications

Originally designed to measure the tension on telephone wires, the AP Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. It is used for such diverse jobs as:

  • Aircraft engine removal as part of a boot strap assembly
  • Line sagging and erecting
  • On-board load testing cranes/davits/lifeboats
  • Tensioning of flare stack guy wires
  • Safe lifting and tension monitoring
  • Erecting and monitoring stage rigging
  • Installation and maintenance of overhead high voltage electrical lines (OHEL)
  • Installation and tension monitoring of large glass installations, tension wires
  • Many other applications: cable pulling, zip wire tensioning, logging, highway recovery vehicles, tug boats

Dillon is the leader in dynamometers with the largest installed population throughout the world. The sturdy design, top grade components and premium coatings make it last for years in severe environments and applications: the pounding aboard military vehicles, rough handling in field measurements and even use underwater (Dillon recommends short intervals in clean water followed with rinse and drain). Embraced by industrial contractors across the globe, we are confident the AP will satisfy your most demanding applications.

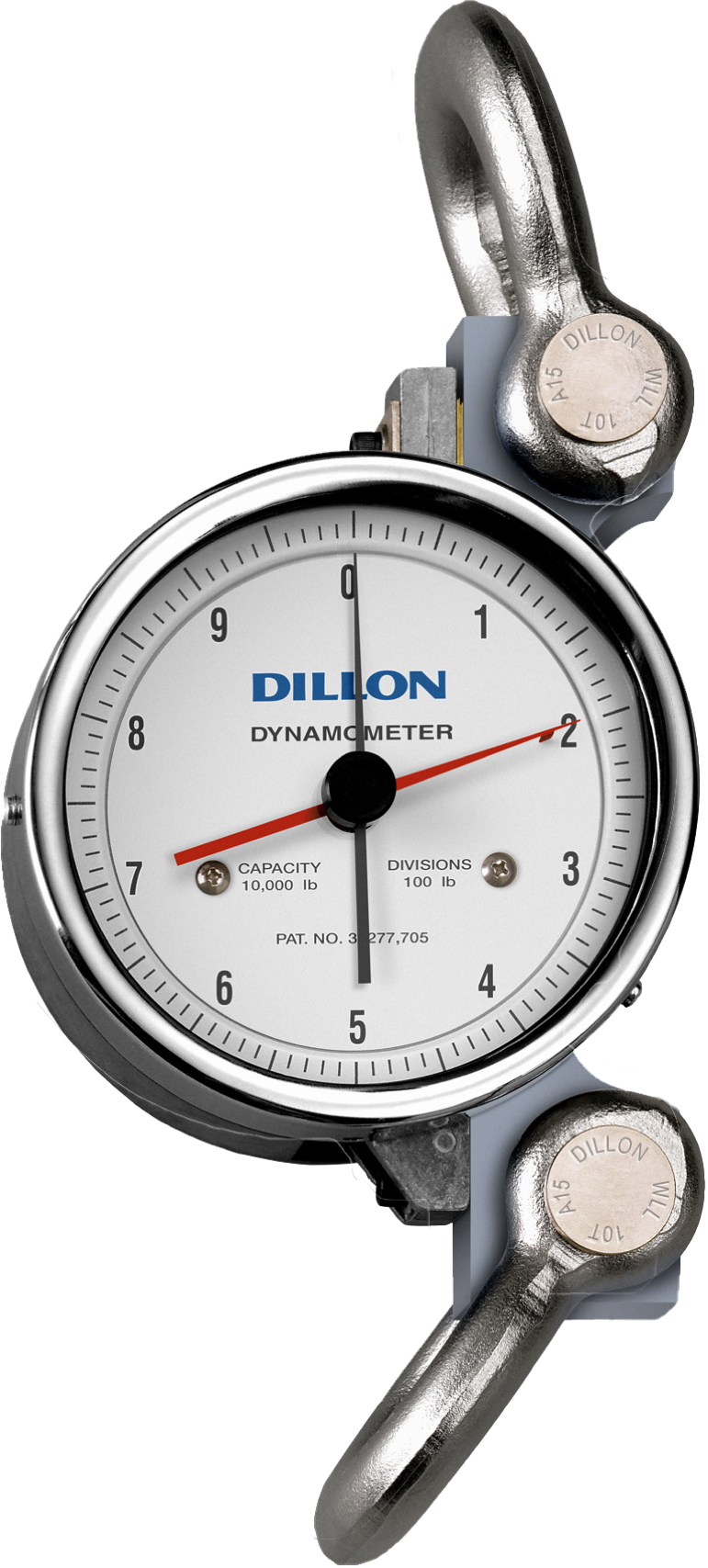

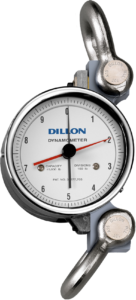

AP Dynamometer

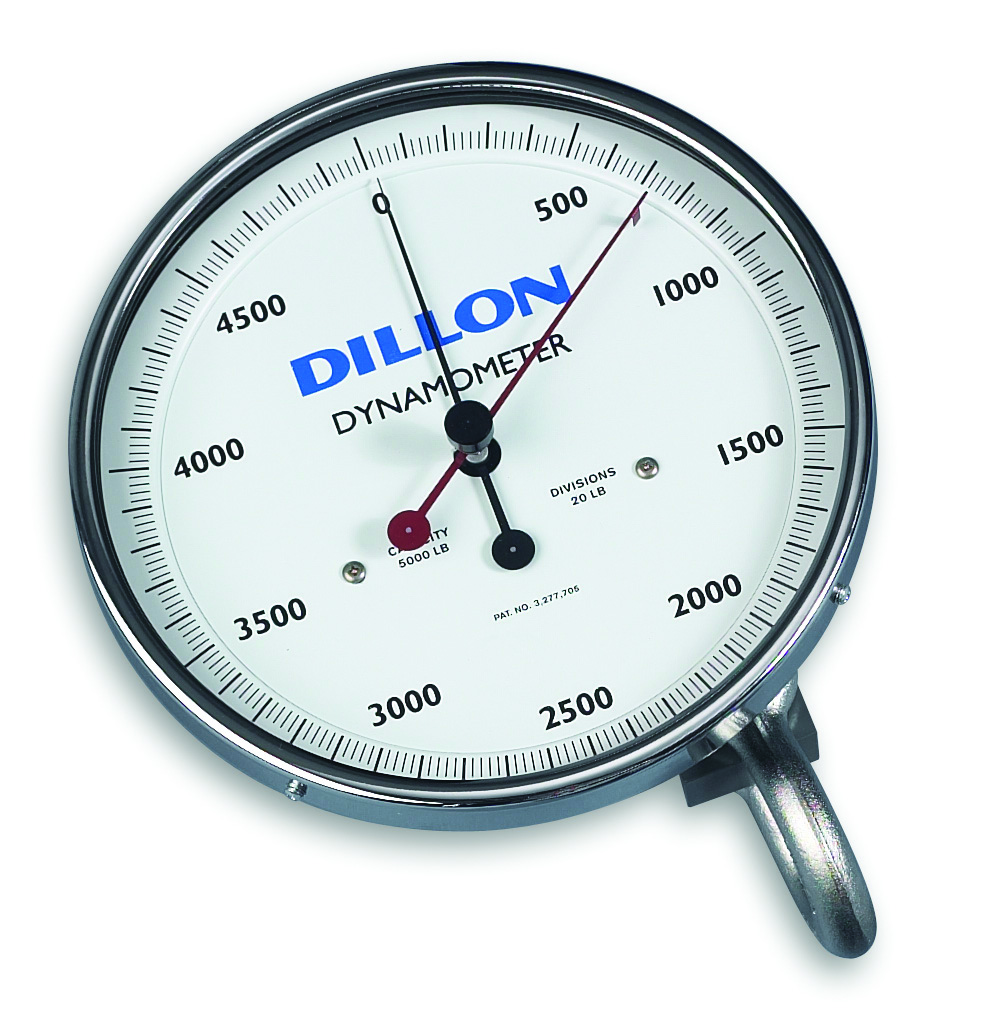

AP_Dyna_10_Inch_Dial

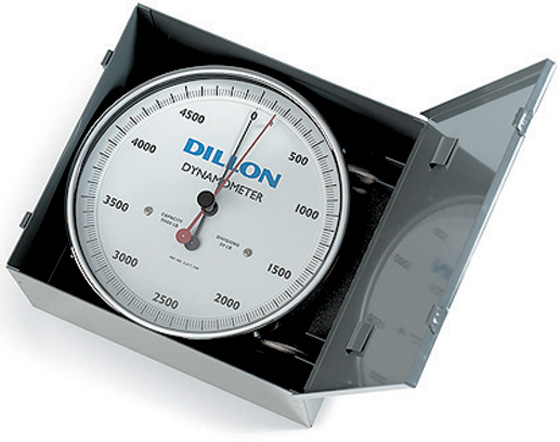

AP_Dyna_Metal_Case

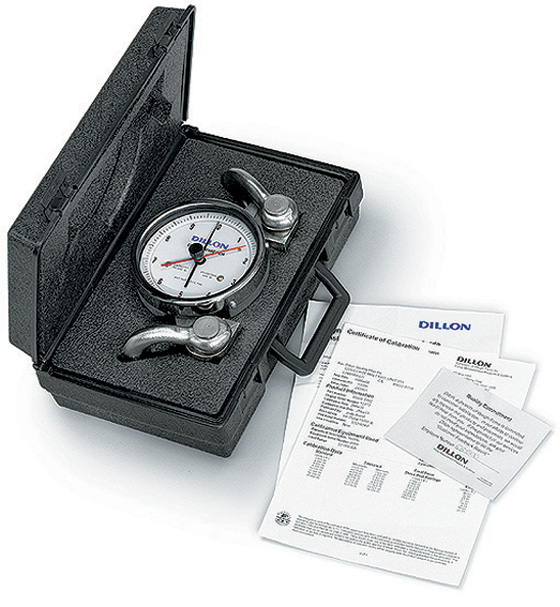

AP_Dyna_Plastic_Case
AP Dynamometer AP_Dyna_10_Inch_Dial AP_Dyna_Metal_Case AP_Dyna_Plastic_Case

Specifications

Range

500lb to 50,000lb

Size

5″ and 10″ dial face

Proof Load

Carry case, batteries, manual and calibration card

Overload

500%

Units of Measure

lbf or kgf

Accuracy

+/- 0.5% of instrument capacity

Zero Control

Zero up to 20% capacity

AP Dynamometer

Calibration

Traceable to NIST

Operating Range

-50º F to 140º F

Corrosion Protection

Powder coated pressure bar

Protection

Hard polymer storage case included along with calibration certificate

Recalibration

Every 12 months

Approvals

CE approved / ASME B30.26 up to 20,000lb capacity

Why the AP Dynamometer?

Value for money entry level dynamometer

High Accuracy: +0.5% of capacity

5:1 Safety Factor

No Batteries Required

5” or 10” dial faces

Anti-parallax design for maximum readability

Max force pointer

Zero or tare functionality

Rugged and durable

Holds calibration

Wide working temperature range -50 to 140ºF

WHO NEEDS AN AP DYNAMOMETER?

Utility & Oil & Gas
Load Testing & Rail & Metro
Aviation
previous arrow
next arrow

Product Resources

These resources help you get the most out of your Dillon product. Can’t find what you’re looking for? Contact Us
MODELCAPACITYPART NUMBER UNIT WT.UNIT DIMENSIONSHIPPING WT.SHIPPING DIM.
5" AP 500lb500 x 530006-00199lb5.9 x 5.9 x 2.7 in.15lb16 x 11 x 17 in.
