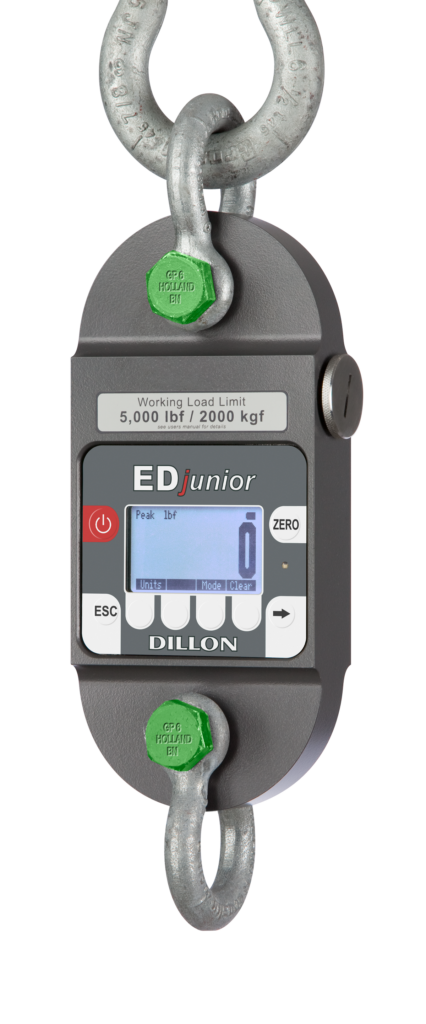

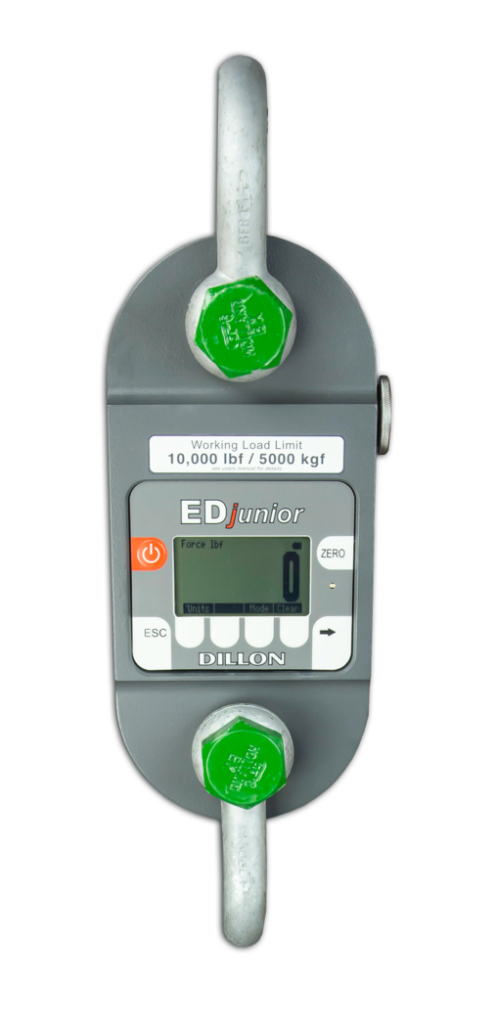

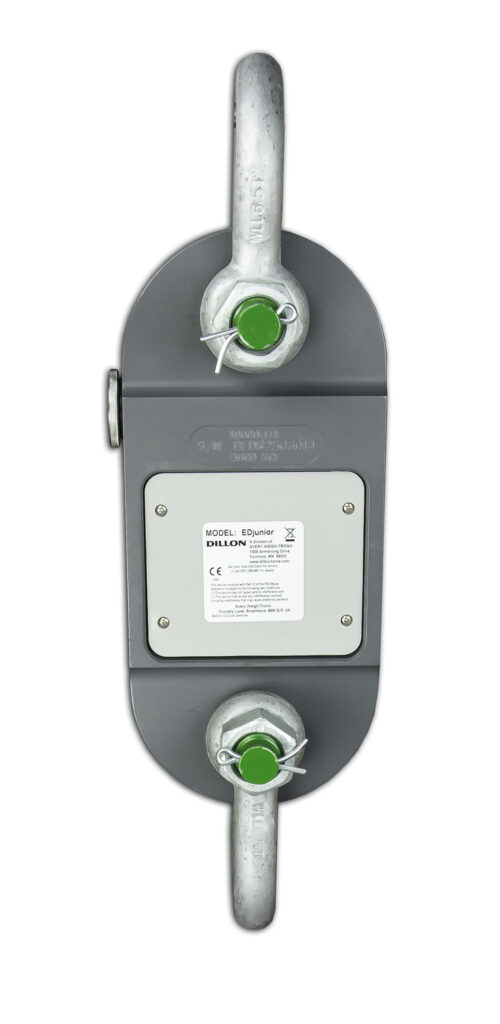

EDjunior Dynamometer

View Specifications

The EDjunior dynamometer gets straight to the point, apply a load – take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.

The EDjunior draws its strength from the exhaustive engineering that went into the design of the Dillon EDXtreme dynamometer. Both share the same base of research and testing to match material characteristics and load cell technology. The choices made in development have yielded an exceptionally rugged instrument capable of consistently delivering accurate, repeatable measurements.

The EDjunior is even more remarkable when you consider price. If you believe you have to pay more to get more – just compare the Dillon EDjunior to the competition. Nothing else comes close!

The EDjunior is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere in the low price range. With the EDjunior, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety.

View Product Dimensions

View Available Shackle Dimensions

View Available Hook Attachment Dimensions

Specifications

Range

500lb to 50,000lb

Overload

EDJ 1,2 & 5T = 700% EDJ 10 = 500%

Units of Measure

lbf, kgf & Newtons

Resolution

1/1000 resolution

Test

BIT test enabled

Operating Range

-4° F to 158° F (-20° C to 70° C)

Protection

Hard polymer storage case included along with calibration certificate

Recalibration

Every 12 months

Proof Load

150%

Modes

Live & Peak display modes

Capture Rate

10Hz

Accuracy

± 0.2% of instrument capacity

Battery

2 x C battery’s with 420+ hours life

Display

Dot-graphic LCD display supports full text and 1” high digits

Environmental

Suitable for continuous outdoor use

Approvals

CE

Why the EDjunior Dynamometer?

Value for money entry level dynamometer

High Accuracy: +0.2% of capacity

Live and Peak display modes

Data Capture from 10Hz

Low, Med & High selectable resolution

Truly rugged and durable

Choose your unit of measure: lb, kg, N

Easy-to-read LCD Display

+420 hrs battery life

7:1 Safety Factor

WHO NEEDS AN EDJUNIOR DYNAMOMETER?

previous arrow
next arrow
Slider

Product Resources

These resources help you get the most out of your Dillon product. Can’t find what you’re looking for? Contact Us
MODELCAPACITYPART NUMBERUNIT WTUNIT DIMENSIONSHIPPING WT.SHIPPING DIM.
5" AP 500lb500 x 530006-00199lb5.9 x 5.9 x 2.7 in.15lb16 x 11 x 17 in.
