AP Dynamometer
The Dillon AP Mechanical Dynamometer exhibits limitless versatility as a tension and weight measuring instrument.
Overview
Precision Measurement for Aviation Safety
Dillon dynamometers are trusted worldwide as an essential part of aircraft maintenance and support operations. From engine demounting and wing mounting to runway recovery and cockpit force testing, they deliver the accuracy, durability, and portability required in the most demanding conditions. With over 50 years of proven reliability, Dillon’s precision instruments give airlines and MROs the confidence that every measurement is safe, consistent, and backed by uncompromising quality standards.
Products Used in Aviation & Aerospace
FI-521 Force Indicator
Think Dillon for pre-calibrated load cell and indicator systems.
Model X-C
Model X-C with compression calibration.

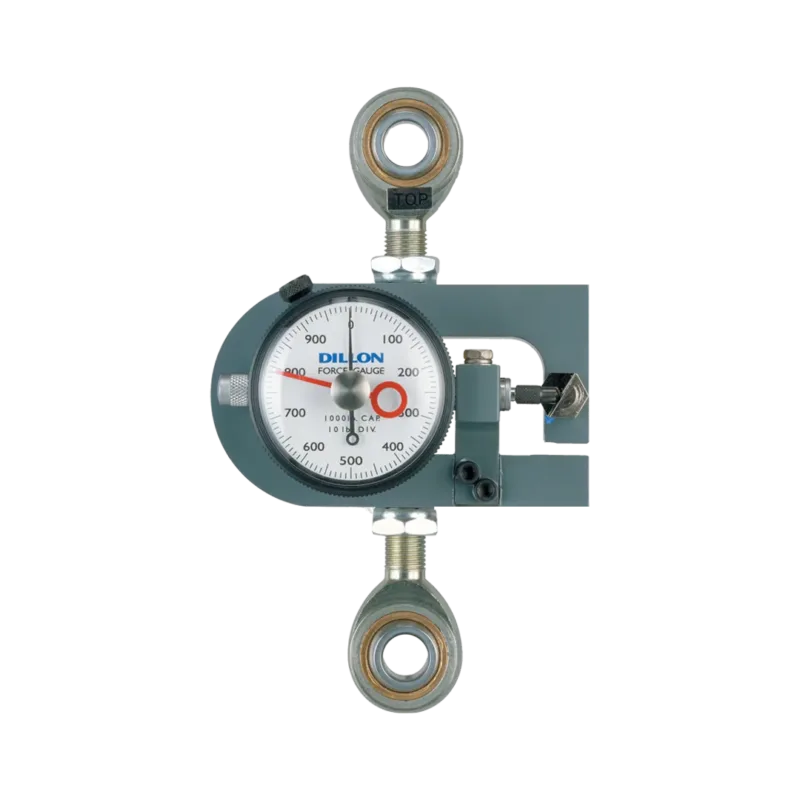

Model X-PP
Model X-PP with compression/tension calibration.

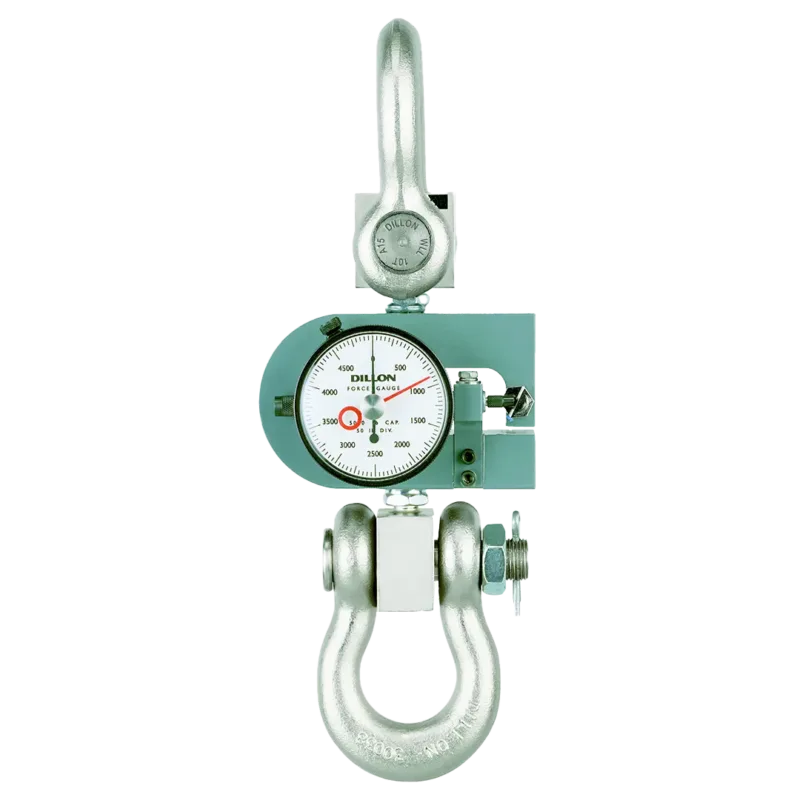

Model X-ST
Model X-ST with tension calibration.

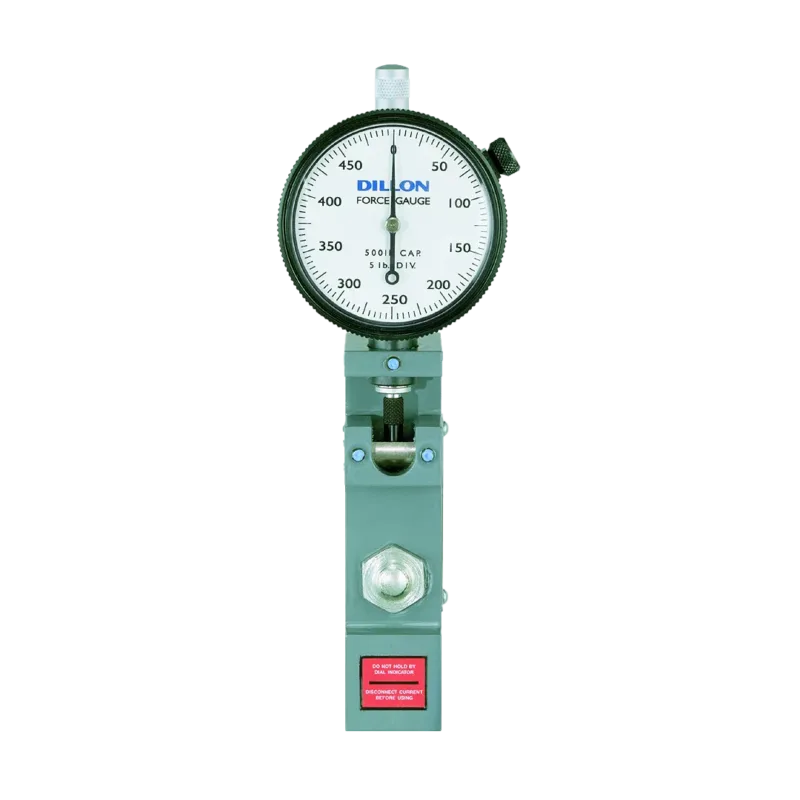

U-Force
An accurate (±1% of full range) mech compression measurement instrument.
About Dillon in Aerospace
Dillon dynamometers form part of specialized demounting kits, for aircraft support centers located at airports worldwide.

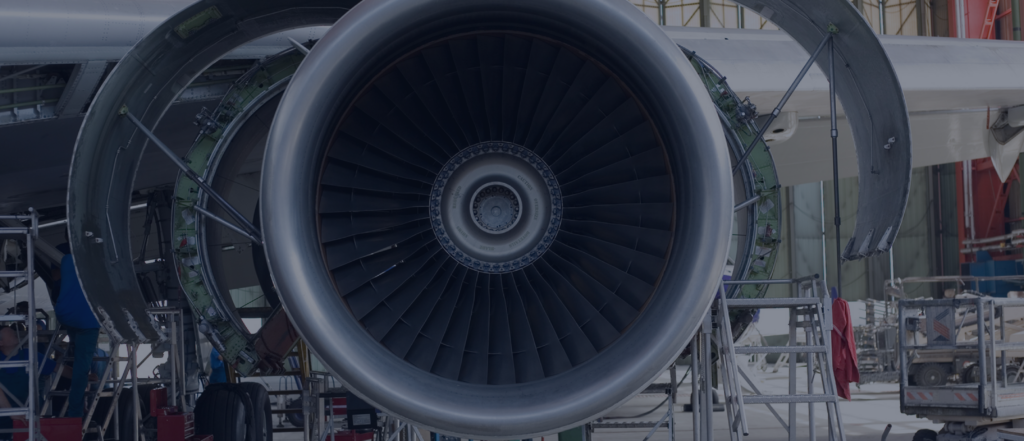

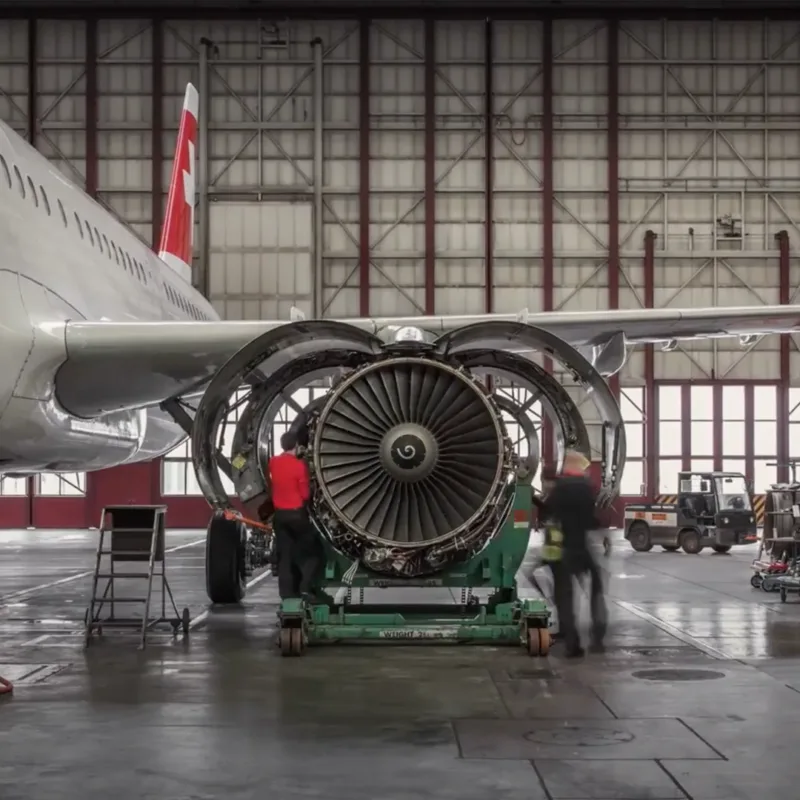

Dillon dynamometers enable service centers to gain an accurate measurement of the engine load as it is demounted and repositioned on the wing mountings. Thanks to its precision engineering and robust safety record, many airlines rely on the Dillon dynamometer to weigh their multi-million dollar engines.
As well as accuracy, anti-parallax glass built into the Dillon dynamometer’s display gives visibility from all angles and due to its robust construction, gives repeat performance in extreme conditions: from an air conditioned hangar in Dubai to a forward operating airfield in the jungle.
Thanks to their portability and quick set up, Dillon dynamometers are also used for runway over runs, measuring the exact force required to safely remove the aircraft from soft grass to the Apron Area.

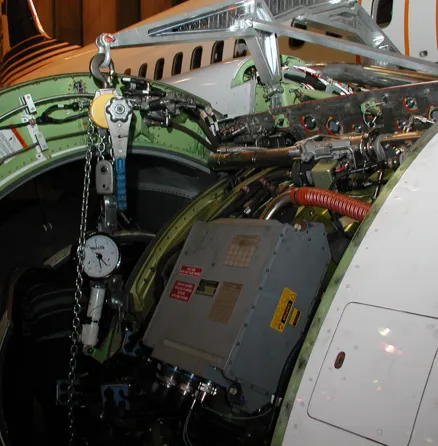

Other applications that the Dillon dynamometers are used for are Air Intake Cowl Removal/Installation, Proof Load Test of Bootstrap and Load Test of Chain Hoist.

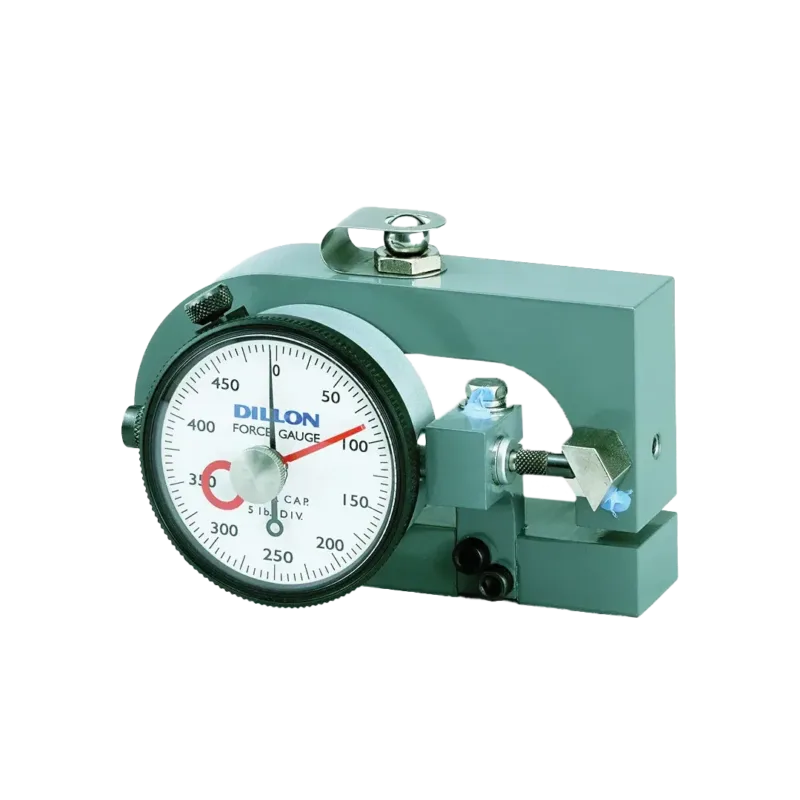

The Dillon X-force and U-force gauges are used for a number of tests including measuring the force for the pedals within the cockpit, the force used to open and close the doors and replacing bearings within the wheels.
Dillon’s quality standards mean that the MRO can trust our measurements knowing that the equipment is backed by over 50 years of experience and all processes, tests and calibrations are recorded for ultimate peace of mind.
