Utility

Utility

Dillon dynamometers and tension meters are used within public utilities for a variety of tasks, including telephone and electric power line sagging, helping to reduce man hours on site and providing accurate tension readings.

Products Used in Utility

AP Dynamometer

AP Dynamometer

The Dillon AP Mechanical Dynamometer exhibits limitless versatility as a tension, traction…

EDjunior Dynamometer

EDjunior Dynamometer

The EDjunior dynamometer gets straight to the point – apply a load; take a reading.

EDX Dyna

EDXtreme Dynamometer

The EDXtreme exemplifies the trademark precision and rugged construction of Dillon Dynamometers.

Quick Check

Quick-Check Tension Meter

Quickly measures tension in cable guardrails, guy lines and overhead wires.

ABOUT DILLON IN UTILITY

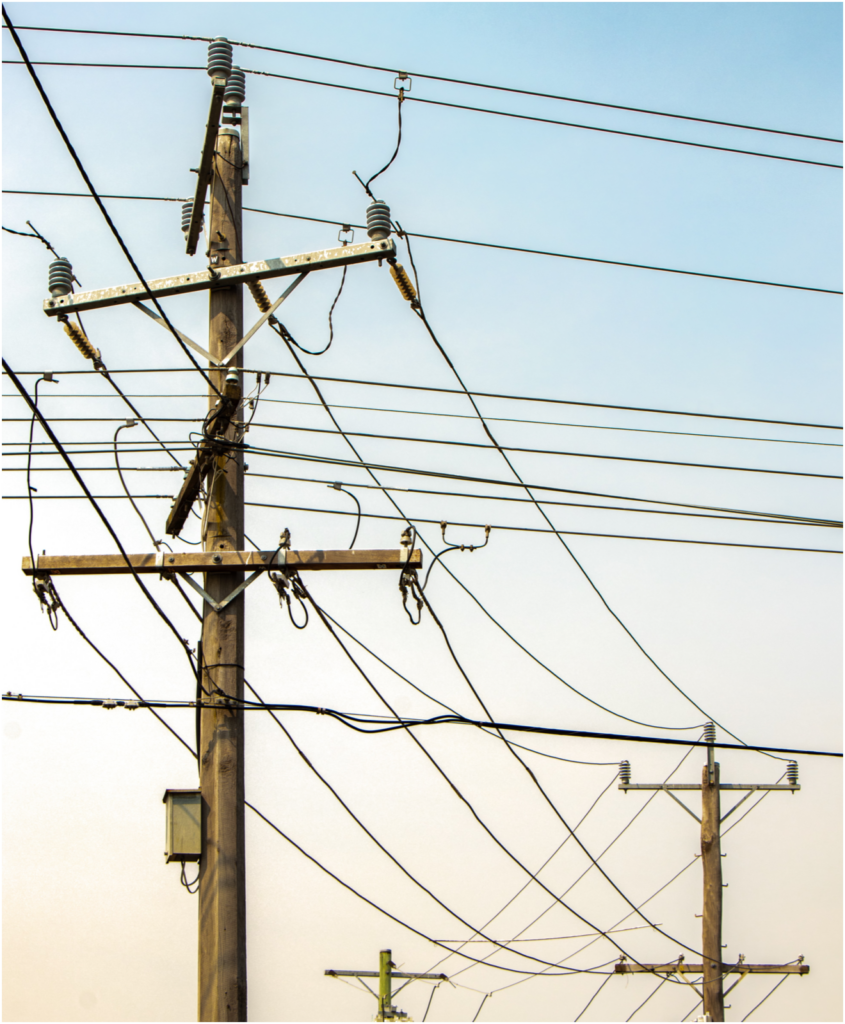

While erecting an overhead line, it is very important that the conductors are under a safe tension.

If the conductor wires are too stretched between supports in a bid to save conductor material, the stress in the conductor can reach unsafe value and in certain cases may break due to excessive tension. Over tensioning of the conductors also puts great strain on the supporting poles, which can result in their collapse in extreme weather conditions. In order to permit safe tension in the conductors, they are not fully stretched but are allowed to have a dip or sag. In an overhead line, the sag should be adjusted so that tension in the conductors is within the recommended safe limits. The tension is governed by the conductor weight, effects of wind and ice loading plus ambient temperature variations. It is a standard practice to keep conductor tension at less than 50% of its ultimate tensile strength i.e. minimum factor of safety in respect of conductor tension. Ensuring you have the conductor under the correct tension will increase service life and reduce overall maintenance costs by minimizing fatigue and storm damage.

Customer Reviews

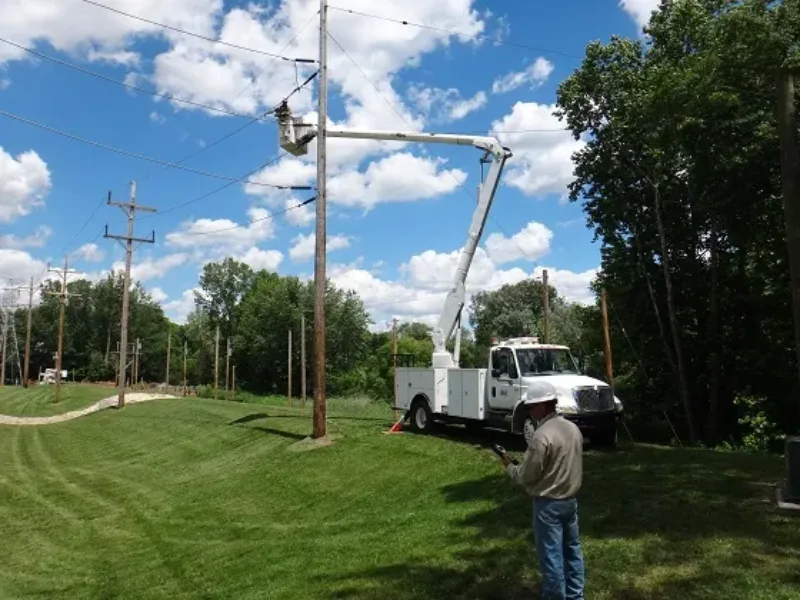

ALBAT Apprentices use EDXtreme for Training in Outside Electrical Construction

Due to the nature of electrical construction industry work, The American Line Builders Joint Apprenticeship & Training Committee (ALBAT) apprentices learn their career skill through practical, “hands-on” training, reinforced by classroom instruction. With courses covering topics such as Rigging Essentials and OSHA 10 Electrical Transmission and Distribution, it is important that the apprentices have hands-on experience of the tools and equipment used in the trade.
