The EDXtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum factor of safety.*

While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location. It is the definition of application versatility.

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon’s experience shines through. The engineers assigned to the EDXtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDXtreme offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC via an RS-232 connection for compilation and analysis or to generate hard-copy printouts.

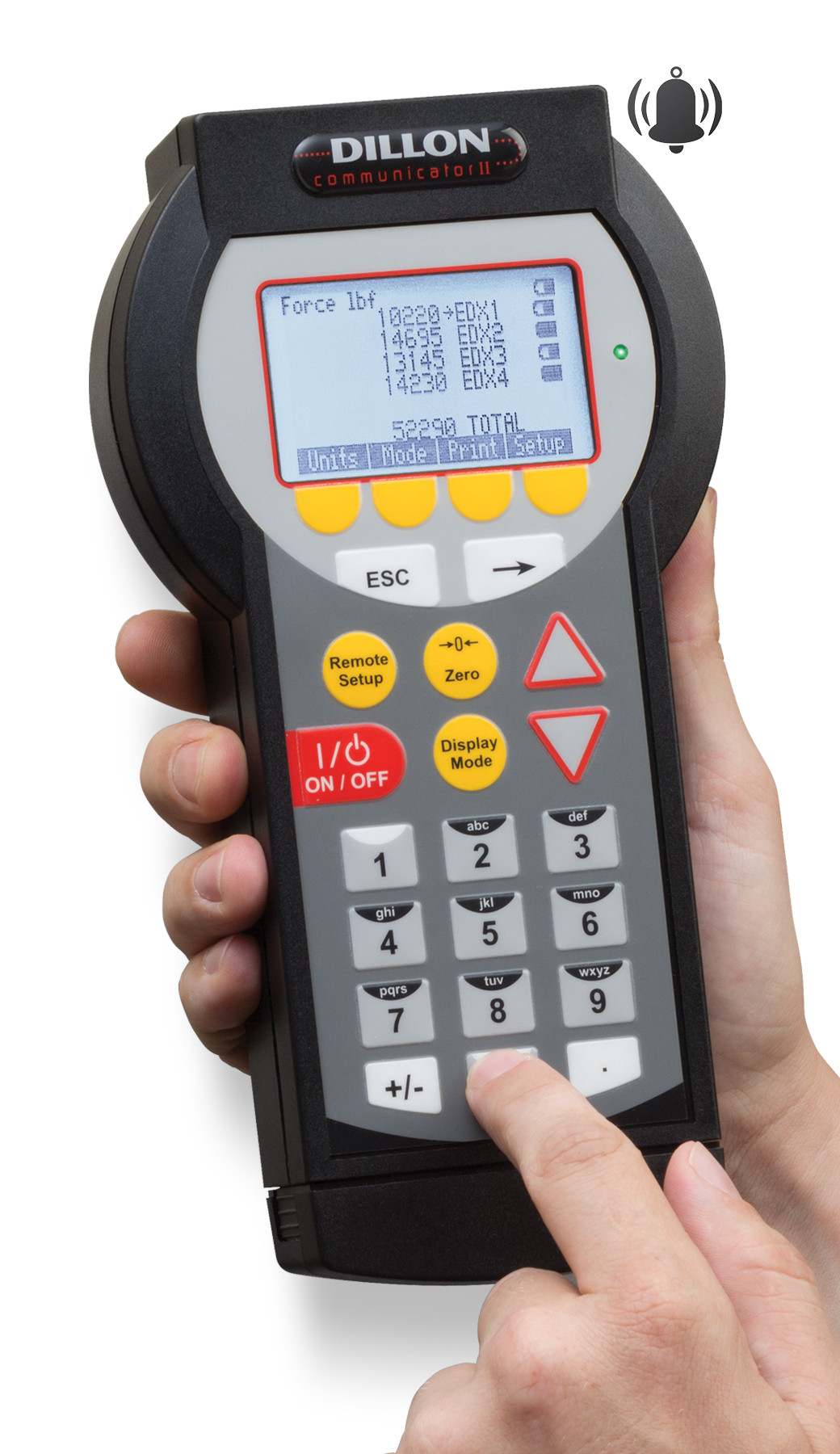

The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display readings at any or all lift points and calculate the total load.

Since 1937, Dillon Dynamometers have been chosen for the jobs where only the best will do. Now, Dillon has once again lifted the performance bar and set the standard for others to follow.

Models with 75 T/160,000 lb or higher capacity feature a 4:1 safety factor and 0.3% accuracy.

View Product Dimensions

View Available Shackle Dimensions

View Available Hook Attachment Dimensions

Specifications

Range

2500lb to 550,000lb

Overload

EDX 1,2 & 5T = 700% EDX 10, 25, 50T = 500% EDX 75, 100, 150, 250T = 400%

Modes

Seven display modes including live & peak

Capture Rate

10Hz, 100Hz & 1000Hz

Accuracy

± 0.1% of instrument capacity

Test

BIT test enabled

Operating Range

-4° F to 158° F (-20° C to 70° C)

Protection

Hard polymer storage case included along with calibration certificate

Recalibration

Every 12 months

Proof Load

150%

Memory

Up to 255 logs

Units of Measure

lbf, kgf & Newtons

Resolution

Low / med / high (5000 resolutions)

Data Export

RS232

Battery

2 x C battery’s with 400+ hours life (backlight off)

Display

Dot-graphic LCD display supports full text and 1” high digits

Environmental

Suitable for continuous outdoor use

Approvals

CE

Why the EDXtreme Dynamometer?

High Accuracy: ±0.1% of capacity

Up to 7:1 safety factor

High Speed Data Capture from 10Hz, 100Hz & 1000Hz

Low, Med & High selectable resolution

Continuous On-board Logging with date & time

Several display modes

Choose your unit of measure: lb, kg, N or custom units

Easy to read high brightness LCD display

Truly rugged and reliable

Plug and play remote (auto connect)

Long battery life
