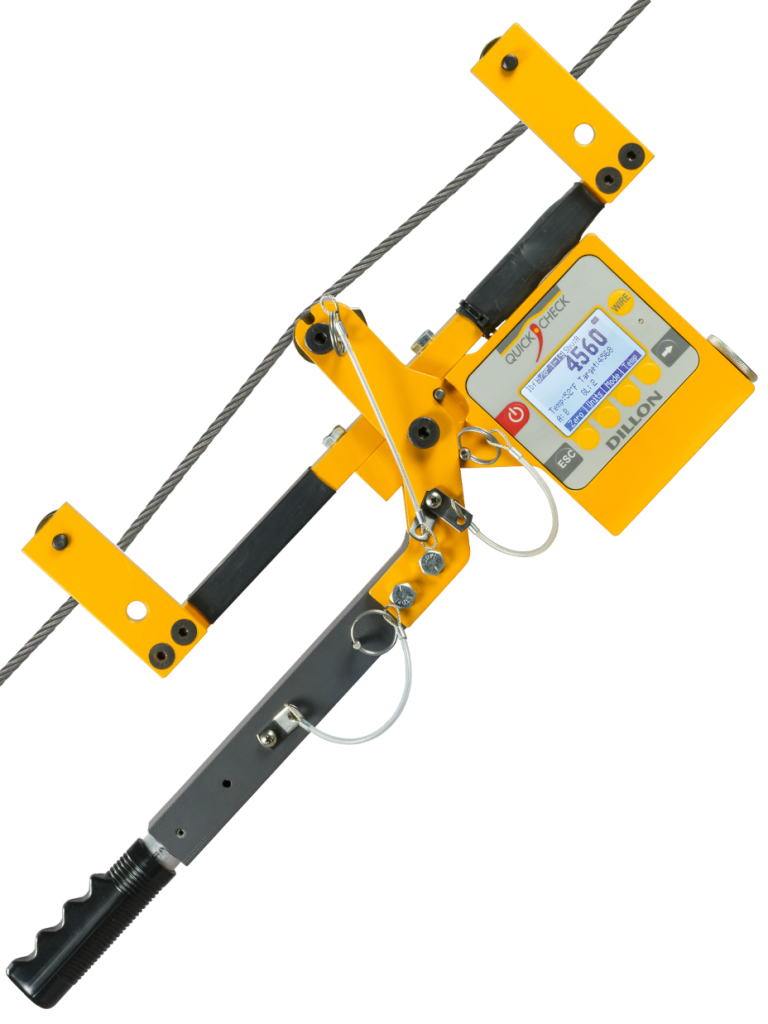

Quick Check-T Cell Tower Shunt Meter

Quick Check-T Cell Tower Shunt Meter

View Specifications

The Dillon Quick Check-T tension meter makes a difference. It reduces time on the job site by eliminating the need for whiteboards, changing sheaves, and the need for charts to figure out target tensions. This unit also reduces time off of the job site by having automatic site form completion, with image, and direct complete reports.

Key Features:

  • Bluetooth® enabled
  • Custom mobile app
  • Multi-wire single sheave
  • Calibration check rod
  • Automatic report generation with photos
  • Automatic target tension calculations
  • Ability to capture pre and post tension readings
  • Inbuilt image capture
Quick Check-T
Quick Check-T
Quick Check-T
Quick Check-T
Quick Check-T Quick Check-T Quick Check-T Quick Check-T

Specifications

Capacity

10,000 lb/45 kN/4500 kg

Communications

Bluetooth®

Data Export

Via mobile app

Wire Calibrations

Up to 20 wire calibrations

Capture Rate

10Hz, 100Hz & 1000Hz

Accuracy

+ 3% instrument capacity

Operating Range

-4° F to 158° F (-20° C to 70° C)

Protection

Hard polymer storage case included

Environmental

Suitable for continued outdoor use

Weight

11 lb (5 kg)

Size

0 x 23 x 3” (25 x 59 x 8 cm)

Quick Check

Range

Wire sizes from 3/16” (4.75 mm) up to 1.0” (25.4 mm)

Display

Dot-graphic LCD display supports full text

Units of Measure

lbf, kgf & Newtons

Resolution

Low / med / high (5000 resolutions)

Battery

Two C batteries

Calibration

2 x AA battery’s with 120+ hours life (backlight off )

Calibration

Each wire rope is calibrated and is traceable to the National Institute of Standards and Technology. Certificate included with curve readings. Passes only with three consecutive confirming runs, with all points in specification.

Recalibration

Every 12 months

Approved By

Majority of cell tower owners

Why the Quick Check-T?

Bluetooth® enabled, Custom mobile app

Time saving check-tensioning mode

Portable and rugged – Designed for outdoor use

Built-in averaging saves time and eliminates errors

Factory calibrated for up to 20 unique wire sizes and types

Speed and Accuracy

WHO NEEDS A Quick Check-T?

Cell Tower
