Model X-ST

Dillon offers the Model X-ST in seven capacities from 100 lb to 10,000 lb or 25 kg to 5,000 kg. Accuracy is ±1% of full range. (Note: For applications requiring capacities beyond 10,000 lb or 5,000 kg in tension, consider the Dillon Dynamometer).

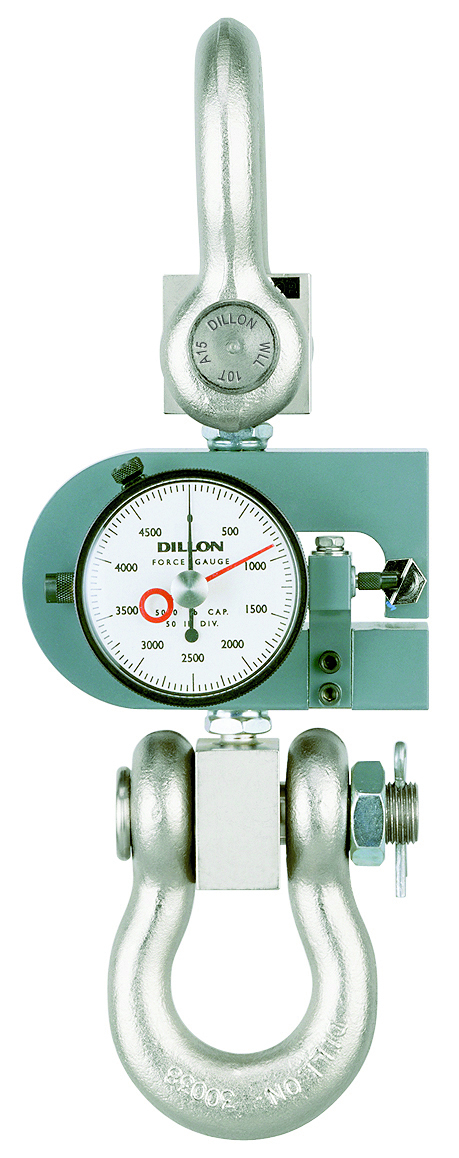

Tension Force Gauges in capacities through 2,000 lb (1,000 kg) are supplied with two rod-end connectors. 5,000 and 10,000 lb (5,000 kg) capacities are equipped with convenient shackles and pins.

Calibration is available in pounds and kilograms.


  • Shockless dial indicator for installations involving the sudden application or release of force. (Maximum pointer cannot be supplied with shockless dial indicator)
  • Maximum load pointer which remains at peak load until manually reset.
  • Zero position on dial may be factory positioned at 12, 3, 6, or 9 o’clock. Standard position is at 12 o’clock.

View Product Dimensions
